| Brand Name: | Y&X |
| MOQ: | 1 Set |
| Price: | Negotiate |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C,T/T |

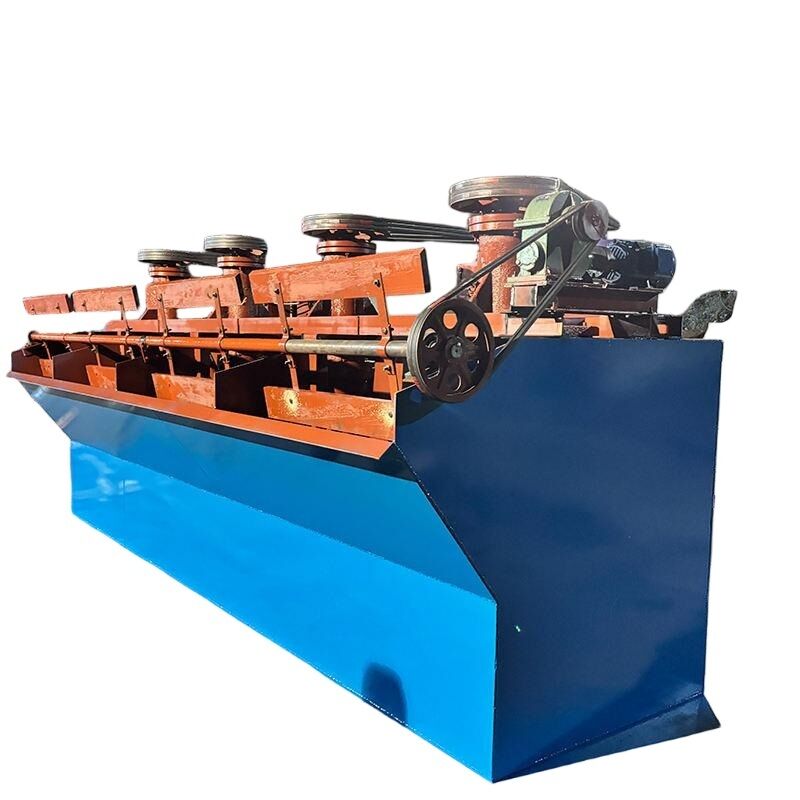

This energy-saving flotation machine is designed for mineral processing and ore beneficiation of ferrous metals, non-ferrous metals, precious metals and non-metallic minerals.
Its small impeller diameter and low rotating speed help reduce power consumption while providing suitable pulp agitation, air dispersion and slurry circulation.
The rotating impeller agitates the ore pulp and promotes the mixing of air, pulp and flotation reagents. Air is dispersed through the impeller and stator to form mineralized bubbles.
The bubbles carrying valuable mineral particles rise to the pulp surface and form a froth layer for collection.
Suitable for flotation of:
The machine can be used for roughing, cleaning and scavenging operations according to the flotation process.
| Model | Effective Capacity (m³) | Cell Dimensions L×W×H (m) | Handling Capacity (m³/min) | Installed Power (kW) | Air Inflow (m³/m²·min) | Scraper Speed (r/min) | Single Cell Weight (kg) |
|---|---|---|---|---|---|---|---|
| JJFII-1 | 1 | 1.10×1.10×1.00 | 0.3–1 | 5.5 | 1 | 18 | 1480 |
| JJFII-2 | 2 | 1.40×1.40×1.15 | 0.5–2 | 7.5 | 1 | 18 | 1960 |
| JJFII-3 | 3 | 1.50×1.85×1.20 | 1–3 | 11 | 1 | 18 | 2430 |
| JJFII-4 | 4 | 1.60×2.15×1.25 | 2–4 | 11 | 1 | 16 | 2790 |
| JJFII-8 | 8 | 2.20×2.90×1.40 | 4–8 | 22 | 1 | 16 | 4420 |
| JJFII-10 | 10 | 2.20×2.90×1.70 | 4–10 | 22 | 1 | 16 | 4830 |
| JJFII-16 | 16 | 2.85×3.80×1.70 | 5–16 | 37 | 1 | 16 | 8610 |
| JJFII-20 | 20 | 2.85×3.80×2.00 | 5–20 | 37 | 1 | 16 | 8950 |
| JJFII-24 | 24 | 3.15×4.15×2.00 | 7–24 | 45 | 1 | 16 | 9180 |
| JJFII-28 | 28 | 3.15×4.15×2.30 | 7–28 | 45 | 1 | 16 | 9800 |
| JJFII-42 | 42 | 3.60×4.80×2.65 | 12–42 | 75 | 1 | 16 | 21000 |
The appropriate flotation machine should be selected according to ore type, required processing capacity, flotation stage and cell volume.
For a quotation, please provide your ore type, required capacity and flotation process.
