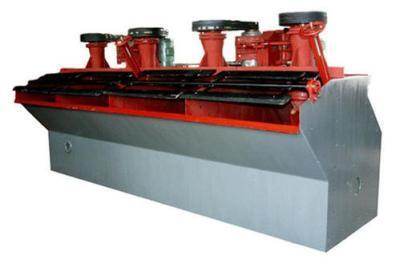

Flotation Cell Bank for Continuous Mineral Processing Plant

Product Introduction

Flotation cell banks can be configured with multiple cells for continuous roughing, scavenging and cleaning circuits in mineral processing plants.

Cell volume, number of cells and equipment arrangement are selected according to processing capacity, ore characteristics, pulp conditions and flotation requirements. Different flotation stages can be combined to form a continuous circuit according to the beneficiation flowsheet.

Key Features

• Multi-Cell Bank Configuration
  Multiple flotation cells can be arranged as a coordinated bank according to the required processing capacity and flotation circuit.
• Rougher, Scavenger & Cleaner Arrangement
  Cells can be configured for roughing, scavenging and cleaning duties according to the mineral processing flowsheet.
• Continuous Pulp Processing
  Multiple cells operate sequentially to support continuous slurry treatment through the flotation circuit.
• Flexible Cell Volume & Quantity
  Cell volume and the number of cells can be selected according to processing capacity, flotation duty and operating conditions.
• Process-Based Equipment Selection
  Equipment configuration is determined according to ore characteristics, pulp conditions, flotation stages and available test data rather than using one fixed arrangement for every application.

Typical Flotation Circuit

Conditioned Slurry → Rougher Flotation → Scavenger Flotation → Cleaner Flotation → Concentrate

The actual arrangement may vary according to mineral characteristics and beneficiation requirements. Intermediate products can be returned to appropriate stages when required by the process flowsheet.

Configuration Guide

Information Required for Selection

For equipment selection and quotation, please provide:

Ore Type · Required Capacity · Feed Particle Size · Pulp Concentration · Flotation Test Data · Process Flowsheet

Based on the available process information, suitable cell volume, cell quantity and flotation equipment configuration can be evaluated.

Applications

Suitable for flotation circuits used in the beneficiation of:

• Non-Ferrous Minerals
• Ferrous Minerals
• Non-Metallic Minerals

Specific equipment configuration should be selected according to mineral properties and process requirements.

FAQ

1. How many flotation cells are required in a flotation bank?
   There is no fixed number for every application. Cell quantity depends on processing capacity, selected cell volume, flotation stages, ore characteristics and process requirements.
2. Can the flotation cell bank include roughing, scavenging and cleaning stages?
   Yes. Multiple flotation cells can be arranged for different flotation duties according to the required beneficiation flowsheet.
