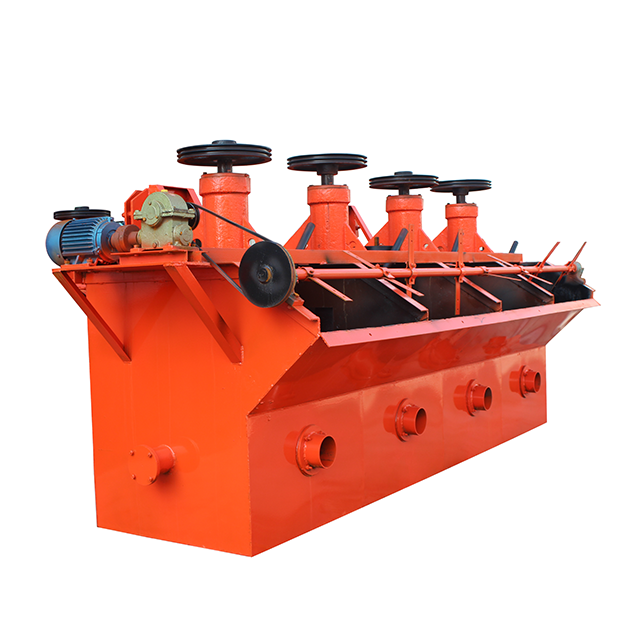

Large Flotation Cell for High-Tonnage Self-Aspirating Circuits

The Large Flotation Cell for High-Tonnage Self-Aspirating Circuits is a 28 m³ mechanical cell that adds real capacity while keeping the simplicity of self-aspiration. It is aimed at plants that want higher throughput without introducing a blower and the piping that goes with it.

Key Advantages

• 28 m³ cell for high-tonnage self-aspirating duty
• No blower — simpler circuit and lower auxiliary load
• 45 kW motor with a 182 r/min rotor
• Suits large banks built from self-aspirating cells
• Wear-resistant polyurethane wear parts

Working Principle

The impeller draws air into the 28 m³ cell and disperses it into fine bubbles, while strong circulation keeps pulp and bubbles in contact for efficient mineral recovery at high tonnage.

Applications

• High-tonnage gold and copper plants
• Large self-aspirating flotation banks
• Polymetallic concentration
• Rougher and scavenger duties

Why Choose This Unit

Self-aspiration need not mean small capacity. This 28 m³ cell brings high-tonnage throughput to blower-free circuits and is built by Y&X to ISO9001 standards, with custom configuration available.

Packing & Delivery

Standard export packing, or customized packing as your request. Lead time is 15–30 working days; payment by L/C or T/T; minimum order quantity 1 set.

FAQ

Contact us for a quotation and technical advice on your flotation project.
