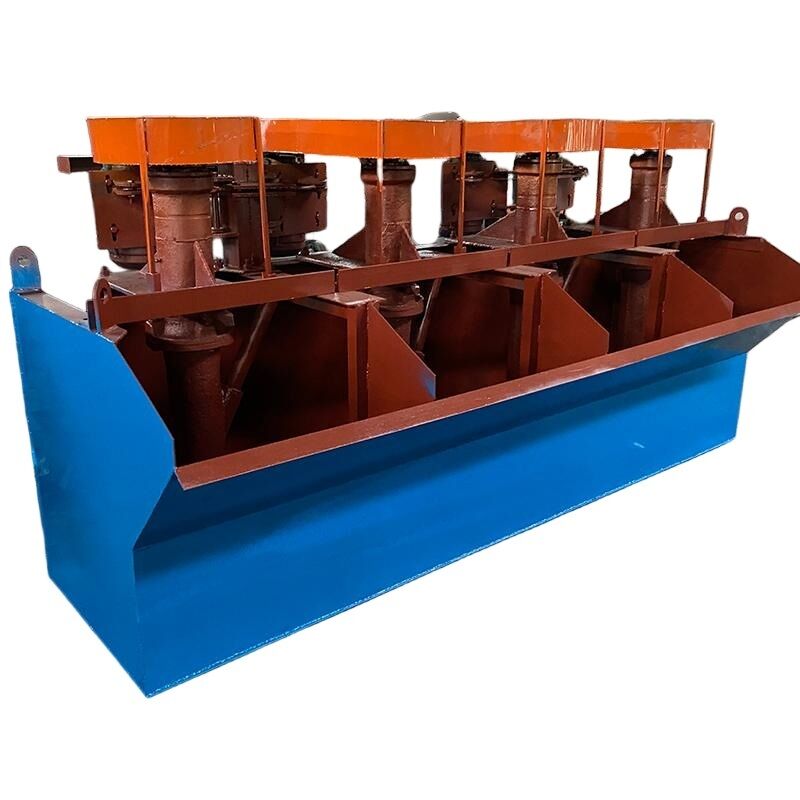

Space Saving 20 M3 Mechanical Flotation Cell For Compact Plant Layouts

Brand Name:	Y&X
MOQ:	1 Set
Price:	Negotiate
Delivery Time:	15-30 working days
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001

Cell Volume:

20 M³

Motor Power:

37 KW

Capacity:

5-12 M³/min

Rotor Speed:

191 R/min

Type:

Self-Aspirating Mechanical

Application:

Mineral Processing

Cell Type:

Flotation Cell

Wear Parts Material:

Wear Resistant Polyurethane

Bank Layout:

Multiple Cells Per Circuit

Customization:

Available To Drawing Or Sample

Brand:

Y&X

Certification:

ISO9001

Packaging Details:

Standard export packing, or customized packing as your request

Supply Ability:

Standard and custom production available

Highlight:

Space Saving Flotation Cell

Self Aspirating Flotation Cell

Compact Flotation Cell

Product Description

Space-Saving Flotation Cell for Compact Plant Layouts

Saves plant floor space while keeping self-aspirating, blower-free operation.

The Space-Saving Flotation Cell for Compact Plant Layouts is a 20 m³ mechanical cell for plants where every square metre counts. It delivers solid flotation capacity in a self-aspirating design that avoids the extra blower and piping that would otherwise take up space around the circuit.

Key Advantages

Compact layout that makes the most of limited floor space
Self-aspirating — no blower and fewer auxiliaries
20 m³ cell with a 37 kW motor and 191 r/min rotor
Straightforward integration into tight plant designs
Wear-resistant polyurethane wear parts

Working Principle

The impeller draws its own air and disperses it into fine bubbles through the pulp. Because no separate air supply is needed, the cell and its immediate pipework take up less room around the bank.

Applications

Compact and modular concentrators
Retrofit projects with limited space
Gold, copper and polymetallic circuits
Plants expanding within existing buildings

Why Choose This Unit

When space is tight, fitting real flotation capacity without a blower house matters. This 20 m³ cell is built by Y&X to ISO9001 standards and supplied to drawing or sample.

Packing & Delivery

Standard export packing, or customized packing as your request. Lead time is 15–30 working days; payment by L/C or T/T; minimum order quantity 1 set.

FAQ

Why is it space-saving?

It is self-aspirating, so no blower or its piping is needed around the circuit.

What is the cell volume?

20 m³, with a capacity of about 5–12 m³/min.

Can it fit an existing building?

Yes; it can be configured to suit your layout.
