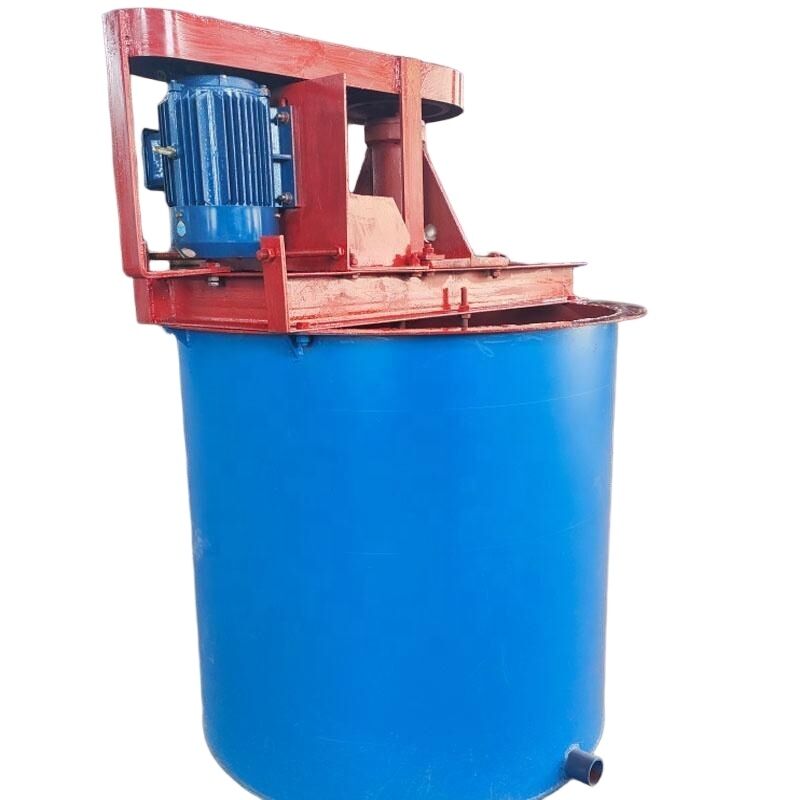

Slurry Agitator Tank Mineral Processing Mixing Tank for Flotation Reagent Conditioning

The XB series agitator tank is essential slurry preparation equipment in mineral processing. A gear motor directly drives the vertical shaft and impeller, creating axial, radial and circumferential flow that keeps solid particles suspended, dissolves reagents and promotes mass transfer and adsorption between particles and reagent molecules.

• Keep solid particles uniformly suspended in the slurry
• Bring target minerals into solution
• Adjust slurry pH value and liquid phase ion composition
• Create the necessary conditions for bubble generation before flotation

Available with conical bottom or flat bottom. Select the type according to your process and maintenance requirements.

Composed of coupling, tank body, frame, mounting base plate, agitation mechanism and gear motor. The impeller is a paddle-type folded-blade impeller or a propeller impeller, suitable for low-viscosity mixing, dissolution, solid suspension and heat transfer.

• Gear motor direct drive with stable load and even static pressure on the foundation
• Vertical shaft perpendicular to tank surface with center deviation less than 3 mm
• Noise level below 85 dB(A); motor and bearing temperature below 60 C
• Conical or flat bottom to suit different process layouts
• Wear parts (impeller and rolling bearings) easy to replace

• XB1010: impeller ZHX400(1)-2, bearing 32210
• XB2020: impeller ZCX700(1)-3, bearing 32212
• XB2525: impeller DJ1000-01, bearing 30316
• XB5055: impeller XB5055-05-1, bearing 32228

• Please state conical bottom requirement when ordering; flat bottom is supplied by default
• The electrical control system is not included; specify component name, model, quantity if needed
• Please state the relative position of the motor, inlet and outlet when ordering
