| Brand Name: | Y&X |
| Model Number: | Flotation Machine Parts |
| MOQ: | 1 Set |
| Price: | Negotiate |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C,T/T |
Composite Silicon Carbide Wear Repair Material is designed for the restoration and wear protection of flotation machine components exposed to abrasive mineral slurry.
The material combines silicon carbide, modified resin and reinforcing components to form a hard wear-resistant protective layer. It can be applied to suitable worn impellers, cover plates and other slurry-contact areas to rebuild worn surfaces and provide additional protection against particle abrasion and slurry erosion.
It is suitable for localized wear repair or larger wear-protection areas according to component condition and operating requirements.
Flotation machine components operate continuously in mineral slurry and can be exposed to particle abrasion, slurry erosion and chemical media.
The composite material combines hard silicon carbide particles with a modified resin matrix and reinforcing components. Silicon carbide provides the primary wear-resistant phase, while the resin matrix provides bonding and structural support.
With a Mohs hardness of 9.5, silicon carbide is suitable for wear-prone surfaces exposed to abrasive mineral particles.
| Parameter | Specification |
|---|---|
| Material Type | Composite Silicon Carbide |
| Main Wear-Resistant Phase | Silicon Carbide (SiC) |
| SiC Mohs Hardness | 9.5 |
| Volume Wear Rate | ≤1.5 × 10⁻⁶ mm³/(N·m) |
| Test Load | 50 N |
| Test Speed | 200 rpm |
| Counter Material | GCr15 Steel |
| Friction Coefficient | 0.15–0.35 under wet friction conditions |
Wear Inspection → Surface Preparation → Worn Area Rebuilding → Composite Silicon Carbide Application → Surface Finishing → Inspection
The actual repair method should be selected according to the component structure, degree of wear and operating conditions.
The material can be used for suitable wear-prone areas including:

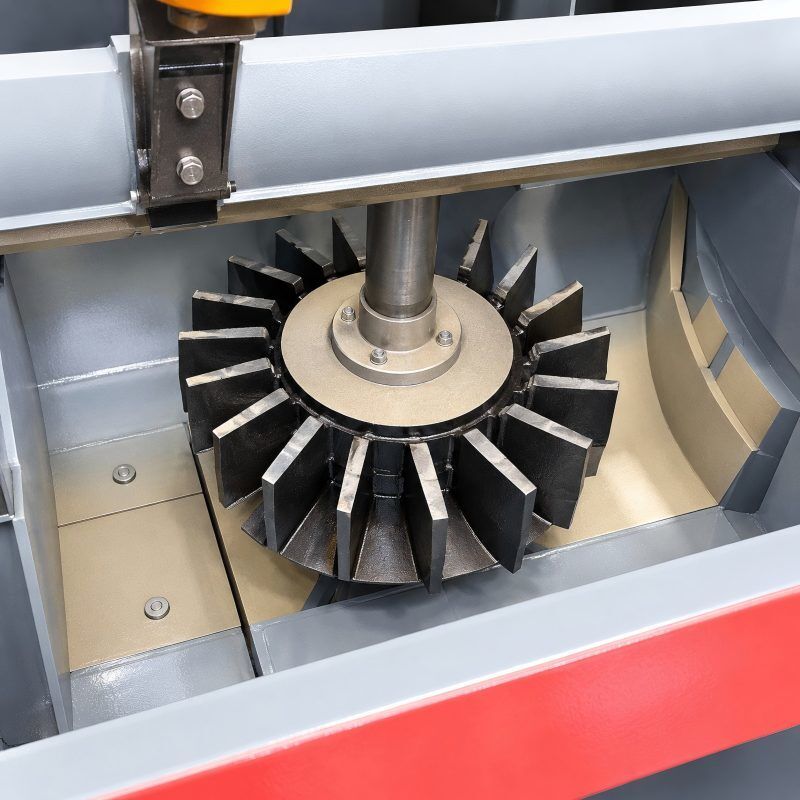

Flotation Machine Impellers · Cover Plates · Slurry-Contact Wear Areas
For components with severe structural damage, the condition of the existing part should be evaluated before selecting repair or replacement.
The selection of a wear protection solution can be affected by:
Providing accurate operating information helps determine a more suitable wear protection solution.
For evaluation and quotation, please provide:
Equipment Type · Part Name · Part Dimensions · Photos of Worn Areas · Slurry Characteristics · Maximum Particle Size · Operating Conditions
Drawings or photos of existing parts are recommended when customized repair or wear protection is required.
Suitable for wear protection applications in:
Flotation Equipment · Mineral Processing Equipment · Mining Equipment · Ore Beneficiation Operations
Can worn flotation machine impellers and cover plates be repaired?
Suitable worn impellers and cover plates can be restored using composite silicon carbide wear-resistant material. The feasibility of repair depends on the component structure and actual wear condition.
What information should I provide for a wear repair solution?
Please provide the equipment type, part dimensions, photos of the worn area, slurry characteristics, maximum particle size and operating conditions. Drawings can also be provided for further evaluation.
