| Brand Name: | Y&X |
| Model Number: | Ore Beneficiation Equipment |
| MOQ: | 1 Set |
| Price: | Negotiate |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C,T/T |
Copper ore beneficiation equipment is used to separate copper-bearing minerals from gangue during mineral processing. For copper ores suitable for froth flotation, flotation equipment is commonly used in the mineral separation stage after crushing, grinding and conditioning.

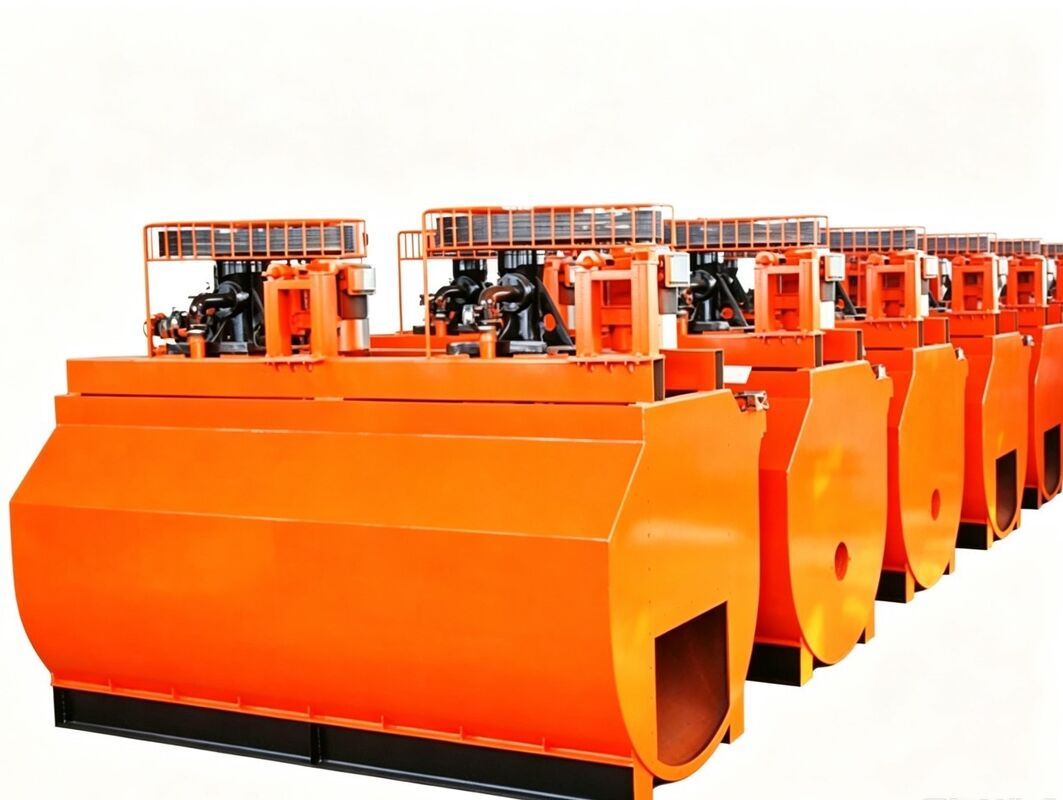

Y&X provides XCF II and KYF II flotation cells for copper ore beneficiation applications, supporting roughing, scavenging and cleaning operations with cell volumes from 1 m³ to 160 m³.
A flotation-based copper ore beneficiation process may include:
Raw Copper Ore → Crushing → Grinding → Classification → Conditioning → Flotation → Copper Concentrate / Tailings
The purpose of crushing and grinding is to prepare the ore for subsequent mineral separation. After conditioning with suitable flotation reagents, flotation can be used to separate suitable copper-bearing minerals from other materials.
The actual process should be determined according to the ore mineralogy and mineral processing test results.
For flotation-based mineral separation in mineral processing plants.
Suitable for different stages of the flotation circuit according to process requirements.
1-160 m³ Cell Volume Range
Multiple cell volumes are available for different processing requirements.
| Parameter | Specification |
|---|---|
| Equipment Type | Flotation Machine / Flotation Cell |
| Series | XCF II / KYF II |
| Effective Cell Volume | 1-160 m³ |
| Feed Particle Size | 0.3-0.01 mm |
| -0.074 mm Fraction | >50% |
| Air Volume | 0.05-1.4 m³/m²*min |
| Flotation Stage | Roughing / Scavenging / Cleaning |
| Application | Ore Beneficiation / Mineral Processing |
The values above are based on the supplied XCF II/KYF II equipment specifications. Individual model parameters vary by cell volume and configuration.
The selection depends on the flotation circuit:
For equipment selection, the flotation flowsheet and required processing capacity should be considered together.
For equipment selection, please provide:
Copper Ore Type:
Processing Capacity (t/h):
Feed Size:
Mineral Analysis:
Existing Flotation Test Data:
Destination Country:
A mineral analysis report, flotation test report or existing flowsheet can also be provided for equipment selection.
The required equipment depends on the ore characteristics and beneficiation method. A processing route may involve crushing, grinding, classification and mineral separation. For copper ores suitable for froth flotation, flotation machines or flotation cells can be used in the separation stage.
The beneficiation method should be determined according to the mineral composition and mineral processing test results. Providing a mineral analysis or flotation test report is helpful for equipment selection.
Yes. The XCF II/KYF II series can be configured for roughing, scavenging and cleaning operations according to the flotation circuit.
Y&X Beijing Technology Co., Ltd. provides flotation equipment, flotation machine spare parts and related equipment for mineral processing applications.
Equipment selection and configuration support can be provided according to ore characteristics, processing capacity and flotation process requirements.
