| Brand Name: | Y&X |
| Model Number: | Flotation Machine |
| MOQ: | 1 Set |
| Price: | Negotiate |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C,T/T |

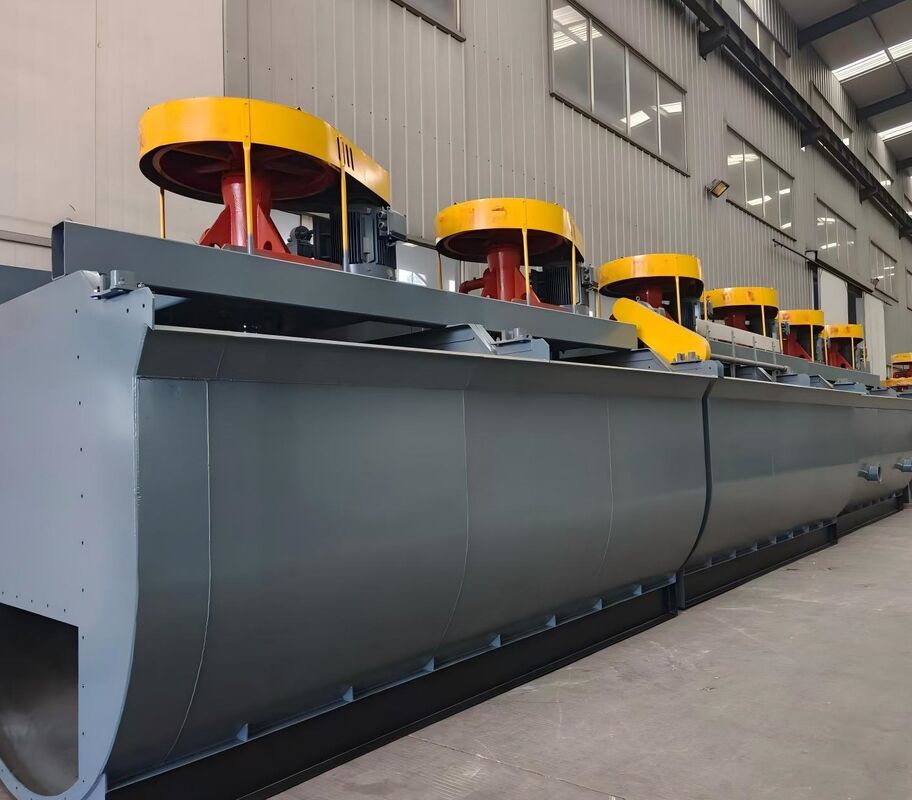

The Rougher Flotation Cell is engineered for the roughing stage in mineral processing flotation circuits, where it performs the initial separation of valuable minerals from conditioned ore slurry. Available in XCF II and KYF II configurations, these flotation cells offer multiple sizing options and can be combined to meet specific circuit requirements.
| Model | Volume (m³) | Tank Size L×W×H (m) | Capacity (m³/min) | Motor Power (kW) | Impeller Dia. (m) | Air Volume (m³/m²*min) | Min. Air Pressure (kPa) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| XCF II / KYF II-1 | 1 | 1.00×1.00×1.10 | 0.2-0.5 / 0.2-1 | 4 / 3 | 0.40 / 0.34 | 0.05-1.4 | >11 | 1056 / 920 |
| XCF II / KYF II-2 | 2 | 1.30×1.30×1.25 | 0.5-1.0 / 0.5-2 | 5.5 / 4 | 0.47 / 0.41 | 0.05-1.4 | >12 | 1346 / 1158 |
| XCF II / KYF II-3 | 3 | 1.60×1.60×1.40 | 0.7-1.5 / 0.7-3 | 7.5 / 5.5 | 0.54 / 0.48 | 0.05-1.4 | >14 | 2172 / 2074 |
| XCF II / KYF II-4 | 4 | 1.80×1.80×1.50 | 1-2 / 1-4 | 11 / 7.5 | 0.62 / 0.55 | 0.05-1.4 | >15 | 2375 / 2100 |
| XCF II / KYF II-6 | 6 | 2.05×2.05×1.75 | 1-3 / 1-6 | 18.5 / 11 | 0.62 / 0.55 | 0.05-1.4 | >17 | 3545 / 3278 |
| XCF II / KYF II-8 | 8 | 2.20×2.20×1.95 | 2-4 / 2-8 | 22 / 15 | 0.72 / 0.63 | 0.05-1.4 | >19 | 4142 / 3857 |
| XCF II / KYF II-10 | 10 | 2.40×2.40×2.10 | 3-5 / 3-10 | 30 / 22 | 0.76 / 0.66 | 0.05-1.4 | >20 | 4894 / 4334 |
| XCF II / KYF II-16 | 16 | 2.80×2.80×2.40 | 4-8 / 4-16 | 37 / 22 | 0.86 / 0.74 | 0.05-1.4 | >23 | 6928 / 7545 |
| XCF II / KYF II-20 | 20 | 3.00×3.00×2.70 | 5-10 / 5-20 | 45 / 37 | 0.91 / 0.78 | 0.05-1.4 | >25 | 9200 / 8240 |
| XCF II / KYF II-24 | 24 | 3.10×3.10×2.90 | 6-12 / 6-24 | 55 / 37 | 0.95 / 0.80 | 0.05-1.4 | >27 | 10819 / 9820 |
| XCF II / KYF II-30 | 30 | 3.50×3.50×3.025 | 7-15 / 7-30 | 55 / 45 | 1.01 / 0.85 | 0.05-1.4 | >31 | 14810 / 13820 |
| XCF II / KYF II-40 | 40 | 3.80×3.80×3.40 | 8-19 / 8-40 | 75 / 55 | 1.10 / 0.95 | 0.05-1.4 | >32 | 18790 / 17097 |
| XCF II / KYF II-50 | 50 | 4.40×4.40×3.50 | 10-25 / 10-40 | 90 / 75 | 1.20 / 1.03 | 0.05-1.4 | >33 | 22000 |
| XCF II / KYF II-70 | 70 | 5.10×5.10×3.80 | 13-50 | 90 | 1.12 | 0.05-1.4 | >35 | 26200 |
| XCF II / KYF II-100 | 100 | 5.90×5.90×4.20 | 20-60 | 132 | 1.26 | 0.05-1.4 | >40 | 33500 |
| XCF II / KYF II-130 | 130 | 6.42×6.62×4.72 | 20-60 | 160 | 1.30 | 0.05-1.4 | >45 | 36200 |
| XCF II / KYF II-160 | 160 | 6.85×7.02×5.02 | 20-60 | 160 | 1.35 | 0.05-1.4 | >48 | 42500 |
Feed Particle Size: 0.3-0.01 mm
-0.074 mm Fraction: >50%
Flotation Stages: Roughing / Scavenging / Cleaning
Mineral Types: Non-ferrous / Ferrous / Non-metallic minerals
A standard flotation circuit typically follows this sequence: Conditioning → Rougher Flotation → Concentrate → Cleaning, while rougher tailings proceed to: Rougher Tailings → Scavenger Flotation. The specific number, volume, and arrangement of flotation cells should be determined based on ore characteristics, plant capacity, and flotation test results.
For model selection and quotation, please provide the following information:
Ore Type + Processing Capacity (t/h) + Feed Size + Flotation Flowsheet + Required Cell Volume (if known) + Destination Country
For replacement applications, please include: Existing flotation machine model, cell volume, and equipment dimensions.
What flotation cell volumes are available?
The series covers effective cell volumes from 1 m³ to 160 m³.
What is the difference between XCF II and KYF II?
XCF II features slurry suction capability, while KYF II does not. Both types can be combined according to specific flotation circuit requirements.
Can the flotation cells also be used for cleaning or scavenging?
Yes, these flotation cells are suitable for roughing, scavenging, and cleaning applications as specified in the product catalog.
How should I select a flotation cell?
Provide your ore type, processing capacity, feed conditions, and flotation flowsheet. Flotation test data is recommended when available for optimal selection.
Y & X Beijing Technology Co., Ltd. provides comprehensive flotation equipment solutions, including flotation machines, spare parts, and related mineral processing equipment. Our technical team offers equipment selection and configuration support tailored to your specific project requirements.
