| Brand Name: | Y&X |
| Model Number: | Industrial Flotation Column |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C,T/T |
Product Overview

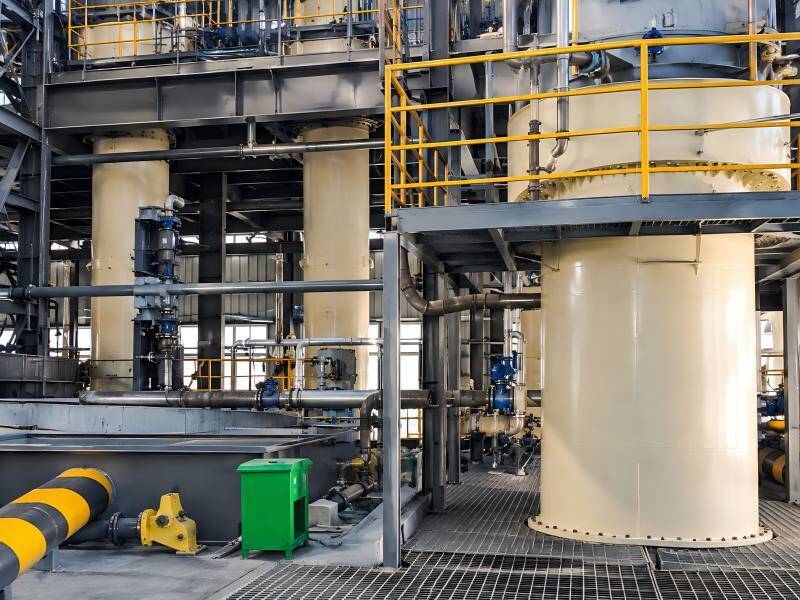

The Industrial Pneumatic Flotation Column is a high-column, counter-current, non-packed flotation system designed for the recovery and separation of non-ferrous minerals, ferrous minerals, non-metallic minerals and secondary resources.
The system mainly consists of a feed system, column body, aeration system, froth wash water system, tailings discharge system and automatic control system.
Key Features
Large Mineralization Zone
The collection zone between the feed inlet and bubble entry area provides an extended region for particle-bubble contact and mineralization.
Counter-Current Particle-Bubble Contact
The counter-current movement of slurry particles and rising bubbles provides favorable conditions for particle-bubble collision and attachment.
Fine Bubble Aeration
Highly dispersed fine bubbles provide a larger gas-liquid interfacial area and more opportunities for contact with mineral particles.
Froth Washing & Automatic Control
Froth wash water helps reduce entrained gangue, while the automatic control system manages operating slurry level and aeration volume.
Working Principle
Slurry enters the flotation column through the feed system and contacts rising bubbles generated by the lower aeration system. Based on differences in mineral surface hydrophobicity, suitable mineral particles attach to bubbles and rise to the froth zone for collection, while gangue and remaining slurry move downward and are discharged through the tailings system.
Slurry level and aeration volume are managed through the automatic control system.
Technical Specifications
| Model / Column Size ΦD×H (mm) | Froth Zone Area (m²) | Feed Concentration (%) | Capacity (m³/h) | Air Flow (m³/h) |
|---|---|---|---|---|
| Φ400 × (8000–14000) | 0.126 | 10–40 | 2–10 | 8–12 |
| Φ600 × (8000–14000) | 0.283 | 10–40 | 3–11 | 17–25 |
| Φ700 × (8000–14000) | 0.385 | 10–40 | 4–13 | 23–35 |
| Φ800 × (8000–14000) | 0.503 | 10–40 | 5–18 | 30–45 |
| Φ900 × (8000–14000) | 0.635 | 10–40 | 7–25 | 38–57 |
| Φ1000 × (8000–14000) | 0.785 | 10–40 | 8–28 | 47–71 |
| Φ1200 × (8000–14000) | 1.131 | 10–40 | 12–41 | 68–102 |
| Φ1500 × (8000–14000) | 1.767 | 10–40 | 19–64 | 106–159 |
| Φ1800 × (8000–14000) | 2.543 | 10–40 | 27–152 | 153–229 |
| Φ2000 × (8000–14000) | 3.142 | 10–40 | 34–203 | 189–283 |
| Φ2200 × (8000–14000) | 3.801 | 10–40 | 41–237 | 228–342 |
| Φ2500 × (8000–14000) | 4.524 | 10–40 | 49–263 | 271–407 |
| Φ3000 × (8000–14000) | 7.065 | 10–40 | 75–435 | 417–588 |
| Φ3200 × (8000–14000) | 8.038 | 10–40 | 82–456 | 455–640 |
| Φ3600 × (8000–14000) | 10.174 | 10–40 | 105–535 | 583–876 |
| Φ3800 × (8000–14000) | 11.335 | 10–40 | 122–608 | 680–1021 |
| Φ4000 × (8000–14000) | 12.560 | 10–40 | 140–756 | 778–1176 |
| Φ4500 × (8000–14000) | 15.896 | 10–40 | 176–862 | 978–1405 |
| Φ5000 × (8000–14000) | 19.625 | 10–40 | 225–960 | 1285–1746 |
| Φ5200 × (8000–14000) | 21.226 | 10–40 | 243–1038 | 1380–1875 |
| Φ5500 × (8000–14000) | 23.746 | 10–40 | 272–1161 | 1523Y-2069 |
Applications
The flotation column is intended for flotation and recovery applications involving:
Actual equipment selection and operating conditions should be determined according to the material characteristics and beneficiation process.
Equipment Selection
To select a suitable flotation column specification, customers are recommended to provide information including:
The column diameter, height and operating configuration should be selected according to actual process requirements.
FAQ
1. What type of flotation column is this?
It is a high-column, counter-current, non-packed pneumatic flotation column equipped with feed, aeration, froth washing, tailings discharge and automatic control systems.
2. What column sizes are available?
According to the provided technical data, column diameters range from Φ400 mm to Φ5500 mm, with listed column heights from 8000 to 14000 mm.
3. What is the feed concentration range?
The listed feed concentration range is 10–40% across the provided specifications.
4. How should the flotation column size be selected?
Selection should consider material characteristics, required processing capacity, slurry concentration, beneficiation process and installation conditions.
Company Introduction
Y&X Beijing Technology Co., Ltd. provides mineral processing equipment and technical solutions for mining and beneficiation applications.
Our product range includes flotation equipment, flotation machine spare and wear parts, dosing systems and related mineral processing equipment. Equipment selection and configuration can be provided according to mineral characteristics, processing capacity and process requirements.
