| Brand Name: | Y&X |
| Model Number: | XCF/KYF II Flotation Machine |
| MOQ: | 1 Set |
| Price: | Negotiate |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C,T/T |

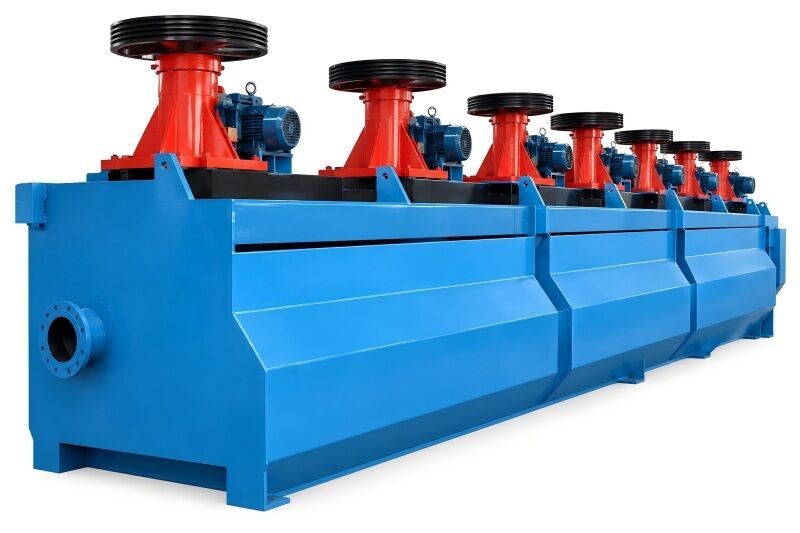

The Industrial Mining Flotation Machine is designed for flotation separation in mineral processing and ore beneficiation plants.
It can be configured for different flotation stages, including roughing, cleaning and scavenging, according to ore characteristics, processing capacity and beneficiation flowsheet requirements.
Forced-air flotation configurations such as KYF and XCF series can be selected according to the specific flotation process and operating conditions.
Flexible Flotation Circuit Configuration
Equipment can be configured for roughing, cleaning and scavenging stages according to the beneficiation flowsheet.
Designed for Industrial Processing
Suitable for continuous flotation operations in mineral processing plants.
Forced-Air Flotation Options
Forced-air configurations can be selected according to flotation process requirements.
Multiple Equipment Configurations
KYF and XCF series can be considered according to ore characteristics, processing capacity and plant requirements.
Project-Based Equipment Selection
Equipment selection is based on actual process conditions rather than using one fixed flotation machine configuration for every ore.
The flotation machine combines slurry agitation and aeration to create suitable conditions for mineral separation.
Air bubbles interact with mineral particles in the slurry. Hydrophobic valuable mineral particles attach to suitable bubbles and rise to the froth layer for collection, while the remaining slurry continues through the flotation circuit according to the beneficiation process.
Typical flotation applications include:
Copper Ore • Lead-Zinc Ore • Molybdenum Ore • Gold-bearing Ore • Phosphate Ore • Fluorite • Graphite and other minerals suitable for froth flotation.
Industrial flotation machines can be configured for roughing, cleaning and scavenging stages according to the required beneficiation flowsheet.
Actual flotation performance and equipment selection depend on ore characteristics and process conditions.
| Model | Effective Volume (m³) | Tank Size (L*W*H, m) | Processing Capacity (m³/min) | Motor Power (kW) | Impeller Diameter (m) | Air Flow (m³/m²·min) | Min. Air Pressure (kPa) | Unit Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| XCF II/KYF II-1 | 1 | 1.00*1.00*1.10 | 0.2–0.5 / 0.2–1 | 4/3 | 0.40 / 0.34 | 0.05–1.4 | >11 | 1056 / 920 |
| XCF II/KYF II-2 | 2 | 1.30*1.30*1.25 | 0.5–1 / 0.5–2 | 5.5 / 4.5 | 0.47 / 0.41 | 0.05–1.4 | >12 | 1346 / 1158 |
| XCF II/KYF II-3 | 3 | 1.60*1.60*1.40 | 0.7–1.5 / 0.7–3 | 7.5 / 5.5 | 0.54 / 0.48 | 0.05–1.4 | >14 | 2172/2074 |
| XCF II/KYF II-4 | 4 | 1.80*1.80*1.50 | 1–2 / 1–4 | 11 / 7.5 | 0.62 / 0.55 | 0.05–1.4 | >15 | 2375 / 2100 |
| XCF II/KYF II-6 | 6 | 2.05*2.05*1.75 | 1–3 / 1–6 | 18.5 / 11 | 0.62 / 0.55 | 0.05–1.4 | >17 | 3545 / 3278 |
| XCF II/KYF II-8 | 8 | 2.20*2.20*1.95 | 2–4 / 2–8 | 22/15 | 0.72 / 0.63 | 0.05–1.4 | >19 | 4142 / 3857 |
| XCF II/KYF II-10 | 10 | 2.40*2.40*2.10 | 3–5 / 3–10 | 30 / 22 | 0.76 / 0.66 | 0.05–1.4 | >20 | 4894 / 4334 |
| XCF II/KYF II-16 | 16 | 2.80*2.80*2.40 | 4–8 / 4–16 | 37/22 | 0.86 / 0.74 | 0.05–1.4 | >23 | 6928 / 7545 |
| XCF II/KYF II-20 | 20 | 3.00*3.00*2.70 | 5–10 / 5–20 | 45/37 | 0.91 / 0.78 | 0.05–1.4 | >25 | 9200 / 8240 |
| XCF II/KYF II-24 | 24 | 3.10*3.10*2.90 | 6–12 / 6–24 | 55 / 37 | 0.95 / 0.80 | 0.05–1.4 | >27 | 10819 / 9820 |
| XCF II/KYF II-30 | 30 | 3.50*3.50*3.025 | 7–15 / 7–30 | 55 / 45 | 1.01 / 0.85 | 0.05–1.4 | >31 | 14810 / 13820 |
| XCF II/KYF II-40 | 40 | 3.80*3.80*3.40 | 8–19 / 8–40 | 75 / 55 | 1.10 / 0.95 | 0.05–1.4 | >32 | 18790 / 17097 |
| XCF II/KYF II-50 | 50 | 4.40*4.40*4.30 | 10–25 / 10–50 | 90 / 75 | 1.20 / 1.03 | 0.05–1.4 | >33 | 22000 |
| XCF II/KYF II-70 | 70 | 5.10*5.10*3.80 | 13–50 | 90 | 1.12 | 0.05–1.4 | >35 | 26200 |
| XCF II/KYF II-100 | 100 | 5.90*5.90*4.20 | 20–60 | 132 | 1.26 | 0.05–1.4 | >40 | 33500 |
| XCF II/KYF II-130 | 130 | 6.42*6.62*4.72 | 20–60 | 160 | 1.30 | 0.05–1.4 | >45 | 36200 |
| XCF II/KYF II-160 | 160 | 6.85*7.02*5.02 | 20–60 | 160 | 1.35 | 0.05–1.4 | >48 | 42500 |
Selecting a suitable industrial flotation machine requires consideration of the ore characteristics, required processing capacity and flotation flowsheet.
For equipment selection and quotation, please provide:
Ore Type: Mineral or ore to be processed
Processing Capacity: Required throughput
Feed Particle Size: Flotation feed size or grinding fineness
Feed Grade: Valuable mineral content in the feed
Slurry Concentration: If available
Flotation Stage: Roughing, cleaning or scavenging
Concentrate Requirement: Required concentrate grade
Recovery Requirement: Target recovery, if available
Existing Flowsheet: Existing beneficiation process or flotation circuit
Based on these conditions, a suitable flotation machine series and configuration can be recommended.
Q1: What flotation machine is suitable for mineral processing plants?
The suitable flotation machine depends on ore characteristics, processing capacity, flotation stage and beneficiation flowsheet. Equipment should be selected according to actual process requirements.
Q2: Can the flotation machine be used for roughing, cleaning and scavenging?
Yes. Flotation equipment can be configured for different stages of the flotation circuit according to the beneficiation process.
Q3: How do I choose the correct flotation machine size?
Please provide the ore type, required processing capacity, feed particle size, slurry conditions and flotation flowsheet. The appropriate equipment configuration can then be selected according to the project requirements.
Q4: Are KYF and XCF flotation machines available?
KYF and XCF series can be considered for forced-air flotation applications according to process and operating requirements.
Y&X Beijing Technology Co., Ltd. provides mineral processing equipment and technical solutions for mining and beneficiation applications.
Our product range includes flotation equipment, flotation machine spare and wear parts, dosing systems and related mineral processing equipment. Equipment selection and configuration can be provided according to mineral characteristics, processing capacity and process requirements.
