Product Description

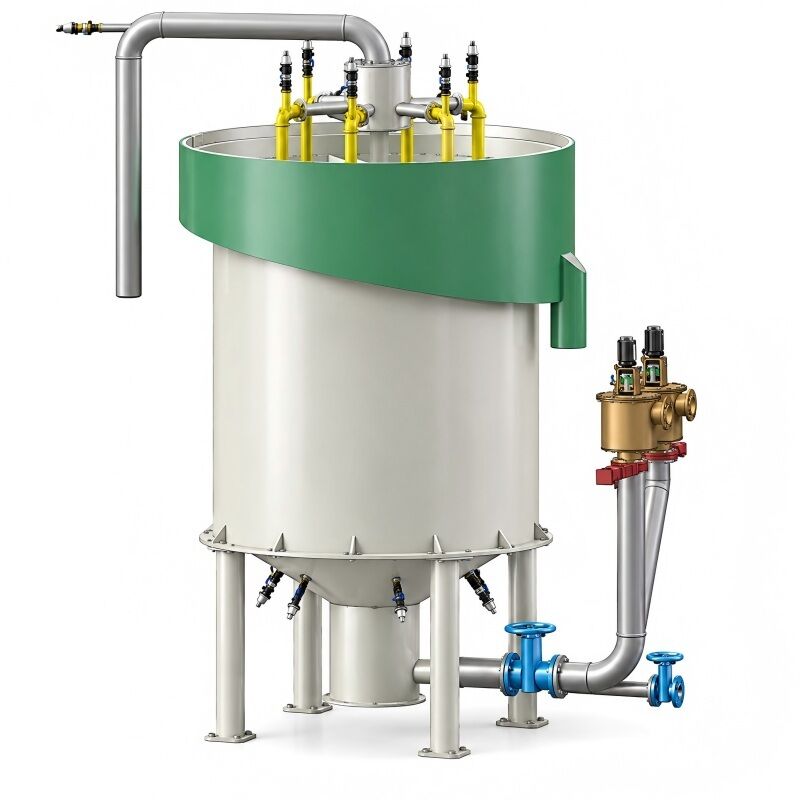

ZFZY Pre-Aeration Flotation Column

The ZFZY Pneumatic Flotation Column is designed with a pre-aeration system installed on the slurry feed pipeline.

Spargers arranged on the feed pipeline introduce gas into the high-velocity slurry stream. The interaction between slurry and gas disperses the gas into fine and relatively uniform bubbles, allowing flotation mineralization to begin in the pipeline before the slurry enters the flotation column.

This pipeline pre-mineralization arrangement improves gas utilization and reduces the required mineralization distance inside the column, helping reduce the column height requirement.

Unlike a feed-jet flotation arrangement, the ZFZY does not require a dedicated high-pressure pump or ejector. Its pre-aeration configuration also reduces the number of spargers required.

Key Advantages

1. Pipeline Pre-Aeration

Aeration starts directly in the slurry feed pipeline instead of relying only on bubble generation after the slurry enters the column.

2. Pre-Mineralization Before Entering the Column

Gas and slurry interact inside the feed pipeline, allowing bubble-particle contact and mineralization to begin before the slurry reaches the flotation column.

3. Fine and Uniform Bubble Generation

High slurry velocity helps disperse the introduced gas into fine and relatively uniform bubbles, providing favorable conditions for flotation mineralization.

4. Higher Gas Utilization

The pre-aeration configuration increases the utilization of introduced gas through gas-liquid interaction in the feed pipeline.

5. No Dedicated High-Pressure Pump

ZFZY does not require a dedicated high-pressure pump for the pre-aeration arrangement, distinguishing it from high-pressure feed jet configurations.

6. No Ejector Required

The system uses pipeline-mounted spargers rather than an ejector-based aeration arrangement.

7. More Than 50% Fewer Spargers

According to the product information, the ZFZY configuration can reduce the number of spargers by more than 50%, simplifying the aeration arrangement.

Working Principle

The ZFZY flotation column uses pipeline pre-aeration. Spargers installed on the slurry feed pipeline introduce gas into the high-velocity slurry, dispersing it into fine and uniform bubbles.

This allows pre-mineralization to begin before the slurry enters the flotation column. The pre-aerated slurry then enters the column for further flotation separation, reducing the required mineralization distance and lowering the column height requirement.

Technical Features

Applications

The ZFZY Pre-Aeration Flotation Column is designed for mineral flotation and beneficiation processes where pneumatic flotation and fine bubble mineralization are required.

Its pipeline pre-aeration configuration can be considered for flotation systems requiring:

• Fine and relatively uniform bubble generation
• Pre-mineralization before slurry enters the column
• Reduced dependence on column height for mineralization
• Aeration without a dedicated high-pressure pump
• A simplified sparger arrangement

Final equipment configuration should be determined according to the mineral characteristics, processing requirements and actual flotation flowsheet.

Equipment Selection & Inquiry Information

For equipment selection and quotation, please provide:

Mineral / Material: Type of ore or material to be processed
Processing Capacity: Required feed capacity
Feed Particle Size: Particle size or grinding fineness
Slurry Concentration: Feed slurry concentration, if available
Feed Grade: Feed grade or mineral composition
Concentrate Requirement: Required concentrate grade or product quality
Recovery Requirement: Target recovery, if available
Current Process: Existing flotation flowsheet or equipment
Installation Conditions: Available space and height restrictions

For new materials or uncertain flotation conditions, laboratory or pilot flotation testing can be considered before industrial equipment selection.

FAQ

Q1: What is a ZFZY pre-aeration flotation column?

The ZFZY is a pneumatic flotation column that introduces gas through spargers installed on the slurry feed pipeline. This allows aeration and flotation mineralization to begin before the slurry enters the main column.

Q2: How does the ZFZY generate flotation bubbles?

Gas is introduced into the high-velocity slurry through pipeline-mounted spargers. The slurry disperses the gas into fine and relatively uniform bubbles for flotation mineralization.

Q3: Does the ZFZY require a high-pressure slurry pump?

The ZFZY pre-aeration configuration does not require a dedicated high-pressure pump for bubble generation.

Q4: Does the ZFZY use an ejector?

No dedicated ejector is required. Its aeration system uses spargers installed on the slurry feed pipeline.

Q5: What information should I provide for flotation column selection?

Please provide the mineral type, required processing capacity, feed particle size, slurry concentration, feed grade, concentrate requirements, recovery requirements and existing flotation process conditions.
