| Brand Name: | Y&X |
| Model Number: | Industrial Flotation Column |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C,T/T |
Product Overview

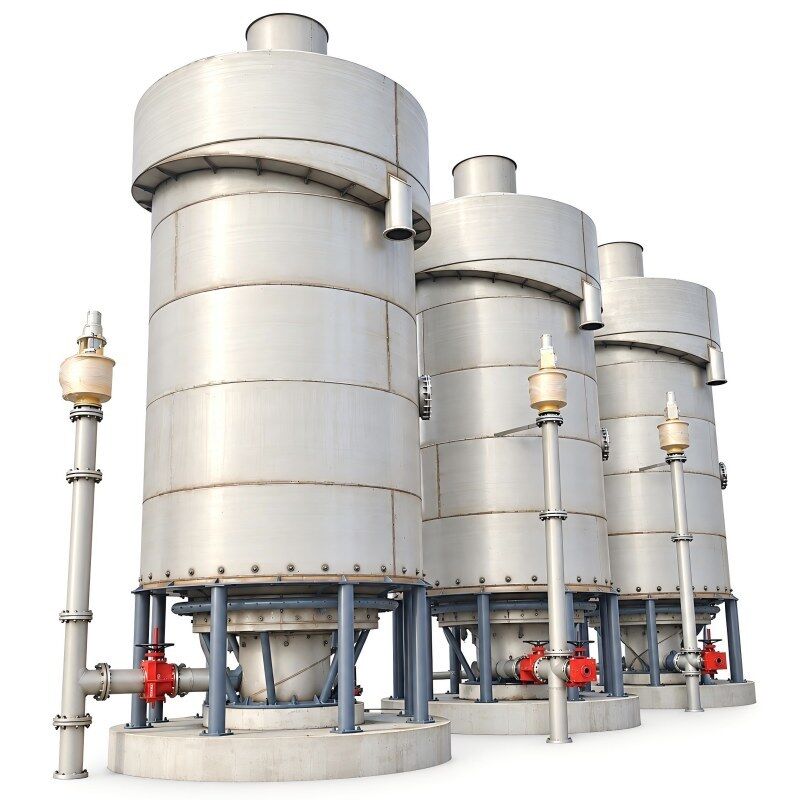

The Large Diameter Industrial Flotation Column is designed for mineral separation and beneficiation applications requiring industrial-scale flotation equipment. Available specifications cover column diameters from Φ400 to Φ5500 mm and heights from 8000 to 14000 mm, providing multiple equipment options for different processing requirements.
Key Features
Large Diameter Range
Multiple specifications are available from Φ400 to Φ5500 mm in column diameter.
Extended Mineralization Zone
The collection zone between the feed inlet and bubble entry provides an extended area for particle-bubble contact and mineralization.
Industrial Processing Capability
Different column sizes provide different processing capacities, allowing equipment selection according to project requirements.
Automatic Process Control
The automatic control system manages operating parameters including slurry level and aeration volume.
Working Principle
Feed slurry enters the flotation column and contacts rising bubbles generated by the lower aeration system. Suitable mineral particles attach to bubbles and rise toward the froth zone, while the remaining slurry moves downward to the tailings discharge system. This counter-current arrangement provides an extended zone for particle-bubble contact.
Technical Specifications
| Model / Column Size ΦD*H (mm) | Froth Zone Area (m²) | Feed Concentration (%) | Capacity (m³/h) | Air Flow (m³/h) |
|---|---|---|---|---|
| Φ400 * (8000–14000) | 0.126 | 10–40 | 2–10 | 8–12 |
| Φ600 * (8000–14000) | 0.283 | 10–40 | 3–11 | 17–25 |
| Φ700 * (8000–14000) | 0.385 | 10–40 | 4–13 | 23–35 |
| Φ800 * (8000–14000) | 0.503 | 10–40 | 5–18 | 30–45 |
| Φ900 * (8000–14000) | 0.635 | 10–40 | 7–25 | |
| Φ1000 * (8000–14000) | 0.785 | 10–40 | 8–28 | 47–71 |
| Φ1200 * (8000–14000) | 1.131 | 10–40 | 12–41 | 68–102 |
| Φ1500 * (8000–14000) | 1.767 | 10–40 | 19–64 | 106–159 |
| Φ1800 * (8000–14000) | 2.543 | 10–40 | 27–152 | 153–229 |
| Φ2000 * (8000–14000) | 3.142 | 10–40 | 34–203 | 189–283 |
| Φ2200 * (8000–14000) | 3.801 | 10–40 | 41–237 | 228–342 |
| Φ2500 * (8000–14000) | 4.524 | 10–40 | 49–263 | 271–407 |
| Φ3000 * (8000–14000) | 7.065 | 10–40 | 75–435 | 417–588 |
| Φ3200 * (8000–14000) | 8.038 | 10–40 | 82–456 | 455–640 |
| Φ3600 * (8000–14000) | 10.174 | 10–40 | 105–535 | 583–876 |
| Φ3800 * (8000–14000) | 11.335 | 10–40 | 122–608 | 680–1021 |
| Φ4000 * (8000–14000) | 12.560 | 10–40 | 140–756 | 778–1176 |
| Φ4500 * (8000–14000) | 15.896 | 10–40 | 176–862 | 978–1405 |
| Φ5000 * (8000–14000) | 19.625 | 10–40 | 225–960 | 1285–1746 |
| Φ5200 * (8000–14000) | 21.226 | 10–40 | 243–1038 | 1380–1875 |
| Φ5500 * (8000–14000) | 23.746 | 10–40 | 272–1161 | 1523-2069 |
Applications
Suitable for the recovery and separation of non-ferrous minerals, ferrous minerals, non-metallic minerals and secondary resources, subject to actual material characteristics and flotation process requirements.
Equipment Selection
Flotation column specification should be selected according to material type, required processing capacity, feed concentration, particle size, flotation process and installation conditions.
For quotation and equipment selection, customers can provide their basic ore and process information.
FAQ
1.What sizes of large flotation columns are available?
Available specifications range from Φ400 to Φ5500 mm in column diameter.
2. What is the maximum listed processing capacity?
The supplied specifications list capacities up to 1161 m³/h for the Φ5500 model.
3. What feed concentration is suitable?
The listed feed concentration range is 10–40%.
4. How is the flotation column size selected?
Selection depends on material characteristics, required capacity, feed conditions and flotation process requirements.
Company Introduction
Y&X Beijing Technology Co., Ltd. provides mineral processing equipment and technical solutions for mining and beneficiation applications.
Our product range includes flotation equipment, flotation machine spare and wear parts, dosing systems and related mineral processing equipment. Equipment selection and configuration can be provided according to mineral characteristics, processing capacity and process requirements.
