| Brand Name: | Y&X |
| Model Number: | Flotation Column |
| MOQ: | 1 Set |
| Price: | Negotiate |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C,T/T |

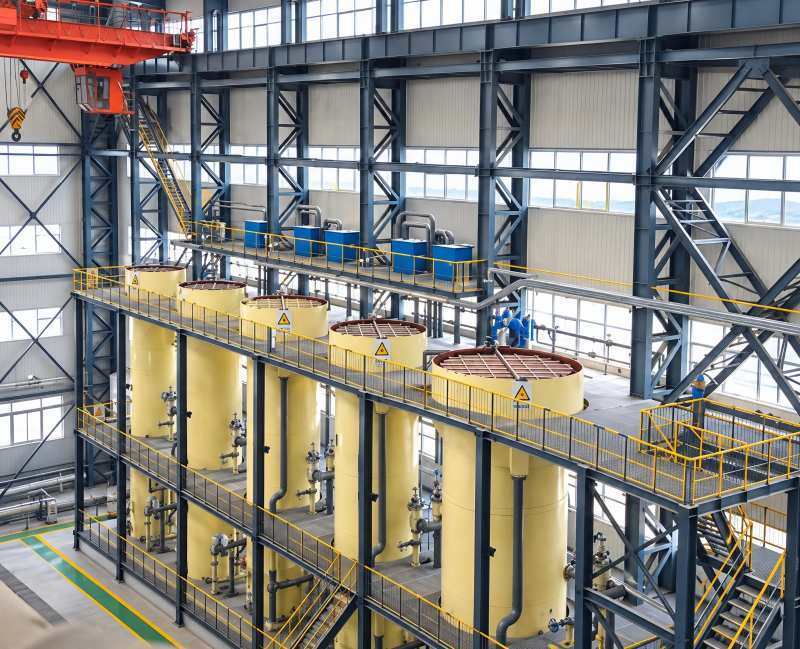

The ZFJS flotation column uses a high-pressure slurry feeding system combined with jet-induced air aspiration. A jet device installed on the top feed pipeline creates negative pressure as the slurry passes through at high velocity, drawing air into the slurry stream.
Intensive gas-liquid interaction disperses the aspirated air into fine bubbles and promotes flotation mineralization. The configuration also allows a relatively compact column structure with an approximate height of 3–4 m.
The ZFJS uses a high-pressure slurry feed arrangement as an important part of its jet aeration process.
The jet aspiration device is arranged on the slurry feed pipeline at the top of the flotation column, creating a direct feed-and-aeration configuration.
High-velocity slurry passing through the jet device generates negative pressure, drawing air into the slurry stream.
Intensive gas-liquid interaction disperses the aspirated air into fine bubbles, supporting flotation mineralization.
The ZFJS can use a column height of approximately 3–4 m, reducing the vertical space required for equipment installation.
The configuration requires fewer jet devices, simplifying the jet aeration arrangement.
| Item | Description |
|---|---|
| Equipment Type | Feed Jet Flotation Column |
| Slurry Feeding | High-pressure Slurry Feeding |
| Aeration Method | Jet-induced Air Aspiration |
| Air Intake | Negative-pressure Air Aspiration |
| Jet Device Position | Top Slurry Feed Pipeline |
| Bubble Generation | Gas-liquid Collision and Dispersion |
| Column Structure | Low Profile |
| Column Height | Approx. 3–4 m |
| Application | Mineral Flotation |
High-pressure slurry enters through the top feed pipeline and passes through the jet aspiration device.
The high-velocity slurry creates negative pressure, drawing air into the slurry stream. Intensive gas-liquid interaction then disperses the aspirated air into fine bubbles.
The interaction between mineral particles and fine bubbles promotes flotation mineralization, after which separation takes place inside the flotation column.
The ZFJS flotation column is particularly suitable for mineral flotation projects where:
Vertical installation height is limited
A compact flotation column arrangement is required
Jet-induced air aspiration is preferred
High-pressure slurry feeding is available
A simplified jet arrangement is required
Final equipment selection should be determined according to mineral characteristics and actual flotation process conditions.
For ZFJS equipment selection and quotation, please provide:
Mineral or material type
Required processing capacity
Feed particle size
Slurry concentration
Feed grade
Target concentrate grade
Recovery requirements
Existing flotation process
Available installation height
For new materials or uncertain flotation conditions, laboratory or pilot-scale flotation testing can be carried out before industrial equipment selection.
The ZFJS uses a jet aspiration device installed on the top slurry feed pipeline. High-velocity slurry generates negative pressure through the jet device and draws air into the slurry stream.
Aspirated air interacts intensively with the high-velocity slurry. The gas-liquid interaction disperses the air into fine bubbles for flotation mineralization.
The ZFJS combines high-pressure slurry feeding with a jet aspiration device located on the top feed pipeline, integrating slurry feeding and jet-induced aeration.
Mineral type, processing capacity, particle size, slurry concentration, feed grade, concentrate requirements, flotation conditions and available installation height should be provided.
Y&X Beijing Technology Co., Ltd. provides mineral processing equipment and technical solutions for mining and beneficiation applications.
Our product range includes flotation equipment, flotation machine spare and wear parts, dosing systems and related mineral processing equipment. Equipment configuration can be selected according to mineral characteristics, processing capacity and actual process requirements.
