| Brand Name: | Y&X |
| Model Number: | XCF/KYF II Flotation Machine |
| MOQ: | 1 Set |
| Price: | Negotiate |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C,T/T |

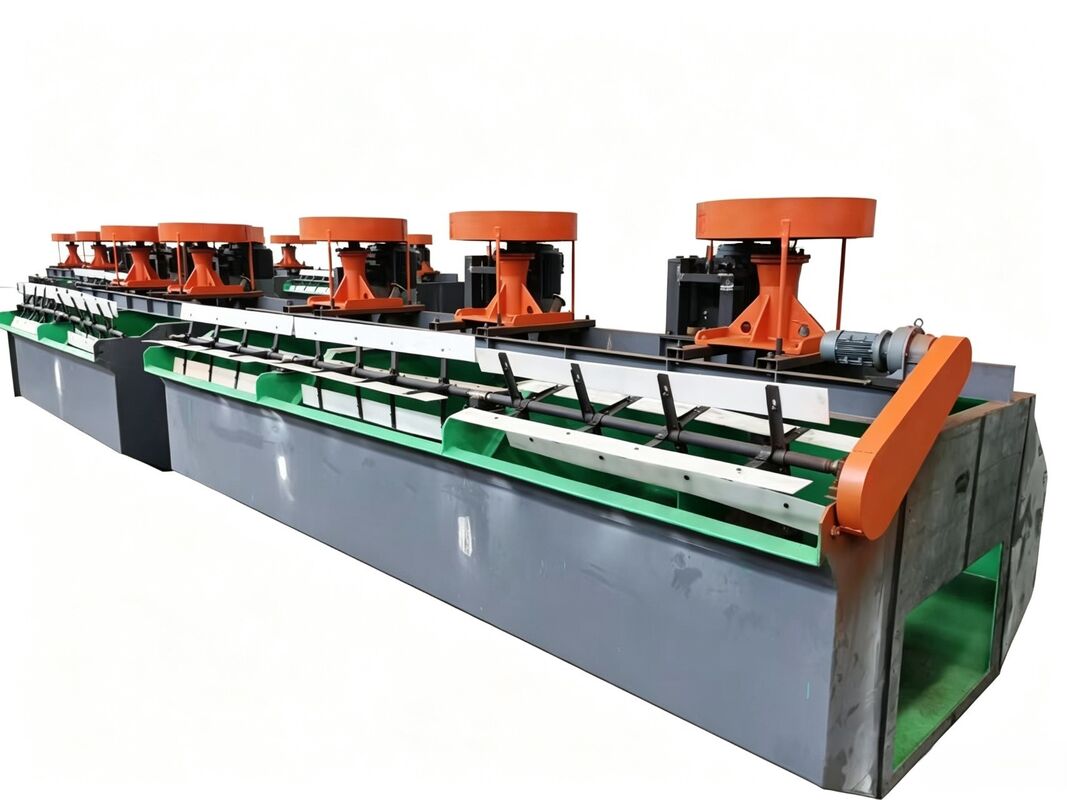

XCF/KYF II Flotation Machine is an pneumatic mechanical agitation flotation machine designed for roughing and cleaning operations in medium to large mineral processing plants.
The series includes XCF II and KYF II flotation machines. The XCF type features suction capability, while the KYF type does not. When used together, XCF can serve as the first flotation cell, with KYF units installed in subsequent cells.
This combination configuration allows flotation cells to be arranged horizontally and eliminates the need for foam reflux pumps between connected flotation cells.
The machine is suitable for flotation of non-ferrous metals, ferrous metals, and non-metallic minerals. Applicable feed particle size is approximately 0.3-0.01 mm, with particles smaller than 0.074 mm accounting for over 50%.
XCF/KYF II Flotation Machine utilizes mechanical agitation and aeration to create the required flotation environment.
During operation, the impeller rotates within the flotation tank, agitating the pulp while mixing air into it. Hydrophobic mineral particles attach to air bubbles and rise to the pulp surface to form mineralized foam. The foam is collected as concentrate, while the remaining pulp continues to circulate in the flotation circuit.
XCF → KYF → KYF → KYF
When KYF flotation machines are used independently, flotation cells are arranged in a stepped configuration according to process requirements.
| Model | Effective Volume (m³) | Tank Size (L*W*H, m) | Processing Capacity (m³/min) | Motor Power (kW) | Impeller Diameter (m) | Air Flow (m³/m²·min) | Min. Air Pressure (kPa) | Unit Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| XCF II/KYF II-1 | 1 | 1.00*1.00*1.10 | 0.2–0.5 / 0.2–1 | 4/3 | 0.40 / 0.34 | 0.05–1.4 | >11 | 1056 / 920 |
| XCF II/KYF II-2 | 2 | 1.30*1.30*1.25 | 0.5–1 / 0.5–2 | 5.5 / 4.5 | 0.47 / 0.41 | 0.05–1.4 | >12 | 1346 / 1158 |
| XCF II/KYF II-3 | 3 | 1.60*1.60*1.40 | 0.7–1.5 / 0.7–3 | 7.5 / 5.5 | 0.54 / 0.48 | 0.05–1.4 | >14 | 2172/2074 |
| XCF II/KYF II-4 | 4 | 1.80*1.80*1.50 | 1–2 / 1–4 | 11 / 7.5 | 0.62 / 0.55 | 0.05–1.4 | >15 | 2375 / 2100 |
| XCF II/KYF II-6 | 6 | 2.05*2.05*1.75 | 1–3 / 1–6 | 18.5 / 11 | 0.62 / 0.55 | 0.05–1.4 | >17 | 3545 / 3278 |
| XCF II/KYF II-8 | 8 | 2.20*2.20*1.95 | 2–4 / 2–8 | 22/15 | 0.72 / 0.63 | 0.05–1.4 | >19 | 4142 / 3857 |
| XCF II/KYF II-10 | 10 | 2.40*2.40*2.10 | 3–5 / 3–10 | 30 / 22 | 0.76 / 0.66 | 0.05–1.4 | >20 | 4894 / 4334 |
| XCF II/KYF II-16 | 16 | 2.80*2.80*2.40 | 4–8 / 4–16 | 37/22 | 0.86 / 0.74 | 0.05–1.4 | >23 | 6928 / 7545 |
| XCF II/KYF II-20 | 20 | 3.00*3.00*2.70 | 5–10 / 5–20 | 45/37 | 0.91 / 0.78 | 0.05–1.4 | >25 | 9200 / 8240 |
| XCF II/KYF II-24 | 24 | 3.10*3.10*2.90 | 6–12 / 6–24 | 55 / 37 | 0.95 / 0.80 | 0.05–1.4 | >27 | 10819 / 9820 |
| XCF II/KYF II-30 | 30 | 3.50*3.50*3.025 | 7–15 / 7–30 | 55 / 45 | 1.01 / 0.85 | 0.05–1.4 | >31 | 14810 / 13820 |
| XCF II/KYF II-40 | 40 | 3.80*3.80*3.40 | 8–19 / 8–40 | 75 / 55 | 1.10 / 0.95 | 0.05–1.4 | >32 | 18790 / 17097 |
| XCF II/KYF II-50 | 50 | 4.40*4.40*4.30 | 10–25 / 10–50 | 90 / 75 | 1.20 / 1.03 | 0.05–1.4 | >33 | 22000 |
| XCF II/KYF II-70 | 70 | 5.10*5.10*3.80 | 13–50 | 90 | 1.12 | 0.05–1.4 | >35 | 26200 |
| XCF II/KYF II-100 | 100 | 5.90*5.90*4.20 | 20–60 | 132 | 1.26 | 0.05–1.4 | >40 | 33500 |
| XCF II/KYF II-130 | 130 | 6.42*6.62*4.72 | 20–60 | 160 | 1.30 | 0.05–1.4 | >45 | 36200 |
| XCF II/KYF II-160 | 160 | 6.85*7.02*5.02 | 20–60 | 160 | 1.35 | 0.05–1.4 | >48 | 42500 |
XCF/KYF II is an pneumatic mechanical agitation flotation machine designed for roughing and cleaning operations in mineral processing plants.
The XCF type features suction capability, while the KYF type does not. They can be combined for use in the same flotation circuit.
Yes. XCF can be used as the first flotation cell, while KYF equipment can be arranged in subsequent flotation cells.
The XCF/KYF II series has an effective volume range of 1 m³ to 160 m³.
The machine is suitable for flotation of non-ferrous metals, ferrous metals, and non-metallic minerals.
