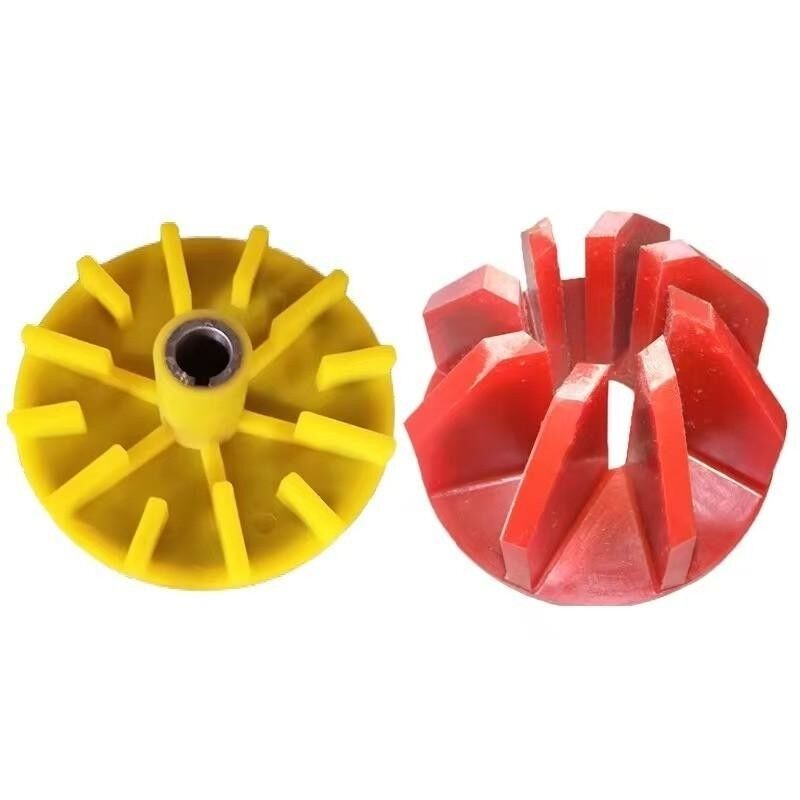

Impact Resistant Polyurethane Impeller Replacement for BF Flotation Machines

Name: Impact Resistant Polyurethane Impeller Replacement for BF Flotation Machines
Brand: Y&X Beijing Technology Co., Ltd
SKU: BF-8.0
Price: Negotiable USD
Availability: InStock

Brand Name:	Y&X
Model Number:	BF-8.0
MOQ:	1 Set
Price:	Negotiate
Delivery Time:	15-30 working days
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001

Fits Model:

BF-8.0

Material:

Polyurethane

Hardness:

Shore A 85-90

Part:

Impeller

Bonding:

Steel Insert Bonded

Application:

Flotation Wear Part

Duty:

High Abrasion

Customization:

Available To Drawing Or Sample

Packaging Details:

Standard export packing, or customized packing as your request

Supply Ability:

Standard and custom production available

Highlight:

Impact Resistant Polyurethane Flotation Impeller

BF Flotation Machine Wear Parts

BF Flotation Machines Polyurethane Impeller

Product Description

Polyurethane Impeller: Drop-In Spare for BF Flotation Machines

The impeller is the one part every BF flotation machine will eventually need. This polyurethane impeller is moulded to the BF-8.0 profile for a bolt-for-bolt fit, so you can swap it out in a normal maintenance window and be back on line the same shift.

Confirm this is your machine

Machine: BF-8.0 self-aspirating flotation machine (8 m³ cell).
Position: main impeller on the shaft, below the cover plate.
Tip: the BF-8.0 uses the double truncated-cone impeller — check your manual before ordering.

Impeller replacement in five steps

Isolate the machine and drain the cell; lock out the drive.
Remove the V-belt guard, then slacken the drive belts.
Unbolt the cover plate to expose the impeller and shaft nut.
Undo the shaft nut, withdraw the worn impeller and clean the taper.
Fit the new polyurethane impeller, torque the nut to spec, re-tension belts and run a no-load check.

Specification

Item	Value
Machine	BF-8.0 flotation machine
Part	Polyurethane impeller
Material	Abrasion-resistant polyurethane
Balancing	Statically balanced before despatch
Fit	OEM bolt-for-bolt interchange

Send us your BF-8.0 serial or a photo of the old impeller and we will ship the matching polyurethane part.
