| Brand Name: | Y&X |
| Model Number: | Mechanical Flotation Machine |
| MOQ: | 1 Set |
| Price: | Negotiate |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C,T/T |

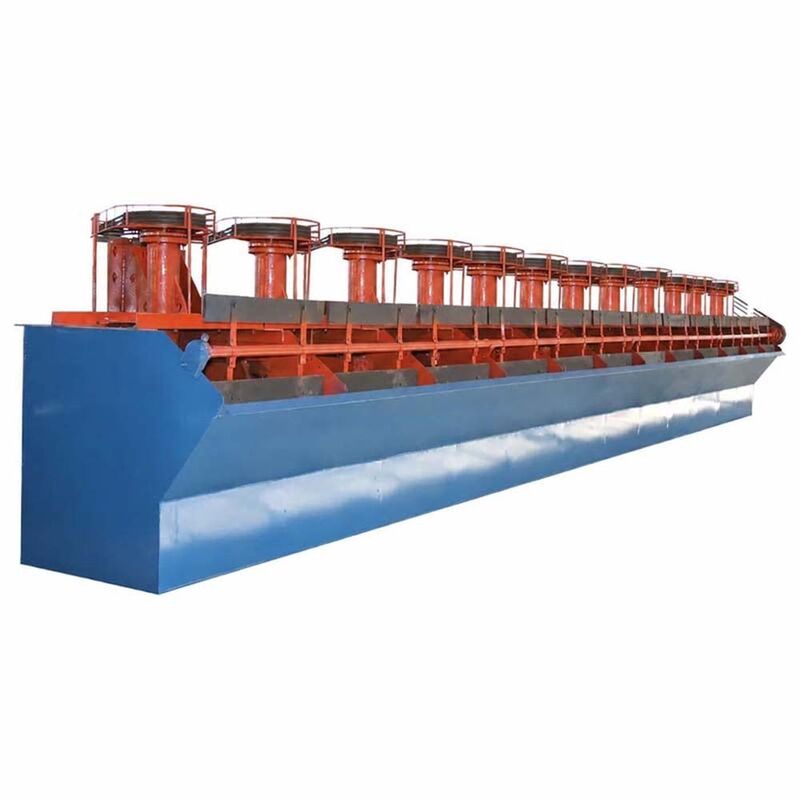

This mechanical flotation machine is designed for mineral processing plants with different flotation capacity requirements. With multiple cell volumes and processing capacities available, the equipment can be selected according to the required capacity, flotation test results and plant flowsheet.
Flexible Capacity for Different Mining Scales
Multiple cell sizes provide flexible options for different-scale mining and mineral processing plants.
Efficient Pulp Circulation
The impeller creates strong downward pulp circulation, helping keep mineral particles suspended and promoting contact between pulp, reagents and air bubbles.
Self-Aspirated Flotation
The rotating impeller generates negative pressure to draw atmospheric air into the flotation zone without requiring an external air supply system.
Self-Pulping Design
The flotation cell combines air suction, pulp suction and flotation functions within the same equipment.
Wide Range of Cell Volumes
Cell volumes from 0.15 to 24 m³ are available to meet different flotation capacity requirements.
The motor drives the main shaft and impeller through a belt transmission system. The rotating impeller agitates the pulp and creates strong downward circulation.
Negative pressure generated at the center of the impeller draws atmospheric air through the suction pipe and center cylinder. Air and pulp are mixed in the flotation zone, while the rotating components disperse the mixture and break larger bubbles into smaller bubbles.
Mineral particles contact with reagents and air bubbles during the flotation process. Mineralized bubbles rise to the pulp surface and form flotation froth for recovery.
Applications by Mining ScaleSmall-Scale Mining Plants
Suitable for flotation circuits requiring smaller cell volumes and moderate processing capacity.
Medium-Scale Mining Plants
Multiple flotation cells can be combined to provide a larger total flotation capacity for medium-scale processing plants.
Large-Scale Mining Plants
Larger cell models and multiple-cell configurations can be used for flotation circuits requiring higher total capacity.
Capacity-Based Selection
The appropriate cell volume and number of flotation cells should be selected according to processing requirements, flotation test results and the plant flowsheet.
Contact us for flotation machine selection based on your mining plant capacity requirements.
