| Brand Name: | Y&X |
| Model Number: | Mining Agitation Tank |
| MOQ: | 1 Set |
| Price: | $900-10000 |
| Delivery Time: | 15-30 working days |
| Payment Terms: | T/T,L/C |

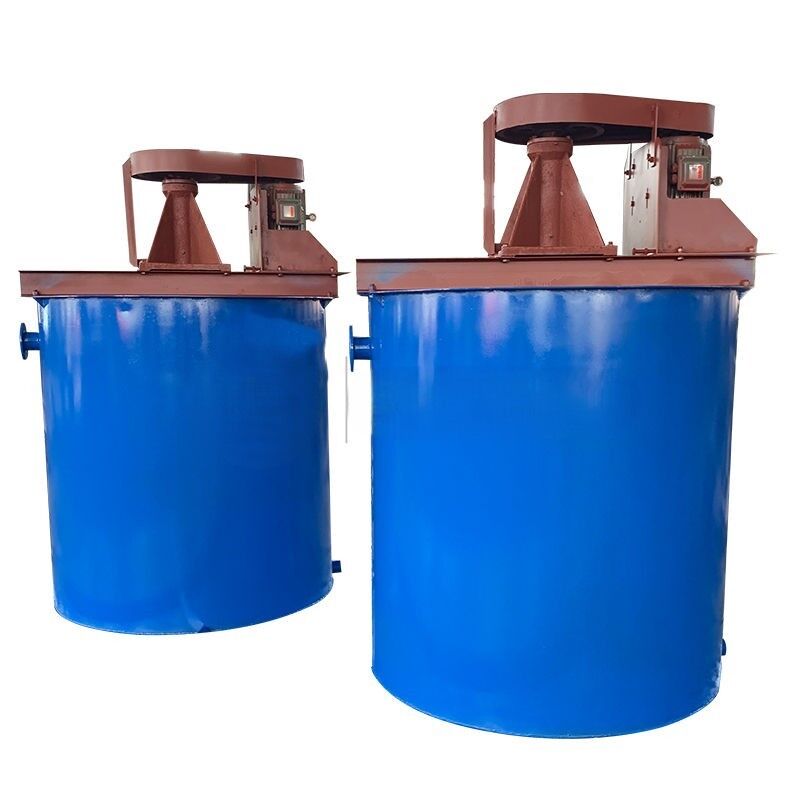

The mining agitation tank is designed for mineral slurry preparation, mixing and conditioning in mineral processing plants. It keeps solid particles suspended and promotes uniform contact between slurry and process reagents.
The tank uses a geared motor and mechanical impeller to create continuous slurry circulation, helping reduce particle settling and maintain stable slurry conditions for downstream mineral processing operations.
The geared motor drives the vertical shaft and impeller. The rotating impeller creates continuous slurry circulation inside the tank, keeping solid particles suspended and promoting uniform mixing of solids, liquid and reagents.
Mixing performance is determined by the impeller configuration, rotational speed, tank dimensions and slurry properties.
The main components include the tank body, vertical shaft, impeller, frame, base plate and geared motor.
The tank can be configured with different impeller arrangements and bottom designs according to process and installation requirements.
| Model | Tank Volume (m³) | Impeller Diameter (mm) | Speed (r/min) | Tip Speed (m/s) | Motor Power (kW) | Geared Motor |
|---|---|---|---|---|---|---|
| XB1010 | 0.79 | 400 | 174 | 3.64 | 1.5 | XLD3-11-1.5 |
| XB2020 | 6.91 | 1000 | 84 | 4.40 | 5.5 | RF87-DV132S4 |
| XB2525 | 12.5 | 1000 | 100 | 5.23 | 11 | RF97-Y11-4P |
| XB5055 | 108 | 2000 | 49 | 5.13 | 37 | RF147-Y37-4P |
Tank selection should consider slurry flow rate, required conditioning time, tank volume, solids concentration, particle size, slurry density and downstream process requirements.
The impeller diameter, rotational speed and motor power should be matched to the tank dimensions and slurry characteristics. Installation space, foundation requirements, inlet and outlet positions and motor arrangement should also be considered before final selection.
1. What is a mining agitation tank used for?
It is used for mineral slurry preparation, mixing, solid suspension and conditioning in mineral processing operations.
2. Can an agitation tank be used before flotation?
Yes. It can be used for pre-flotation slurry conditioning to help maintain particle suspension and promote contact between slurry and reagents.
3. What information is needed to select an agitation tank?
Slurry flow rate, solids concentration, particle size, slurry density, process requirements and installation conditions should be considered.
4. Can the agitation tank be customized?
Yes. Non-standard sizes are available. Tank bottom configuration and the relative positions of the motor, inlet and outlet can be specified according to process and installation requirements.
Standard and custom production available; lead time depends on specifications and quantity.
