| Brand Name: | Y&X |
| Model Number: | Flotation Machine |
| MOQ: | 1 Set |
| Price: | $1000-20000 |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C,T/T |

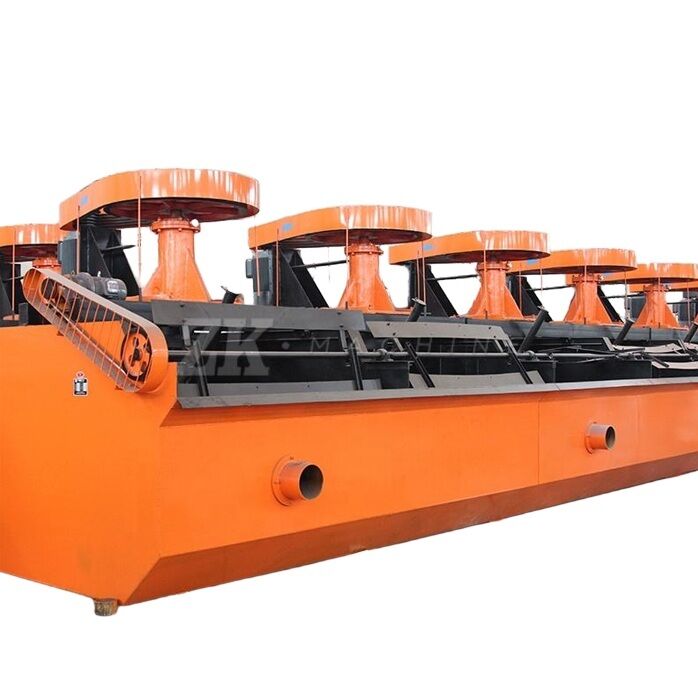

The XCF II and KYF II flotation machine series are pneumatic mechanical agitation flotation machines for separating non-ferrous, ferrous and non-metallic minerals. Covering 1 to 50 m³ cell volume, their rationally and innovatively designed rotor-stator system delivers simple structure, easy maintenance, low energy consumption and high separation efficiency.
Why KYF II / XCF II| Model | Effective Volume (m³) | Cell Size L*W*H (m) | Capacity (m³/min) XCF II / KYF II |
Motor Power (kW) XCF II / KYF II |
Impeller Dia. (m) XCF II / KYF II |
Air Volume (m³/m²·min) | Min. Inlet Air Pressure (kPa) | Weight (kg) XCF II / KYF II |
|---|---|---|---|---|---|---|---|---|
| XCF II / KYF II -1 | 1 m³ | 1.00 x 1.00 x 1.10 | 0.2-0.5 / 0.2-1 | 4 / 3 | 0.40 / 0.34 | 0.05~1.4 | ≥11 | 1056 / 920 |
| XCF II / KYF II -2 | 2 m³ | 1.30 x 1.30 x 1.25 | 0.5-1 / 0.5-2 | 5.5 / 4 | 0.47 / 0.41 | 0.05~1.4 | ≥12 | 1346 / 1158 |
| XCF II / KYF II -3 | 3 m³ | 1.60 x 1.60 x 1.40 | 0.7-1.5 / 0.7-3 | 7.5 / 5.5 | 0.54 / 0.48 | 0.05~1.4 | ≥14 | 2172 / 2074 |
| XCF II / KYF II -4 | 4 m³ | 1.80 x 1.80 x 1.50 | 1-2 / 1-4 | 11 / 7.5 | 0.62 / 0.55 | 0.05~1.4 | ≥15 | 2375 / 2100 |
| XCF II / KYF II -6 | 6 m³ | 2.05 x 2.05 x 1.75 | 1-3 / 1-6 | 18.5 / 11 | 0.62 / 0.55 | 0.05~1.4 | ≥17 | 3545 / 3278 |
| XCF II / KYF II -8 | 8 m³ | 2.20 x 2.20 x 1.95 | 2-4 / 2-8 | 22 / 15 | 0.72 / 0.63 | 0.05~1.4 | ≥19 | 4142 / 3857 |
| XCF II / KYF II -10 | 10 m³ | 2.40 x 2.40 x 2.10 | 3-5 / 3-10 | 30 / 22 | 0.76 / 0.66 | 0.05~1.4 | ≥20 | 4894 / 4334 |
| XCF II / KYF II -16 | 16 m³ | 2.80 x 2.80 x 2.40 | 4-8 / 4-16 | 37 / 22 | 0.86 / 0.74 | 0.05~1.4 | ≥23 | 6928 / 7545 |
| XCF II / KYF II -20 | 20 m³ | 3.00 x 3.00 x 2.70 | 5-10 / 5-20 | 45 / 37 | 0.91 / 0.78 | 0.05~1.4 | ≥25 | 9200 / 8240 |
| XCF II / KYF II -24 | 24 m³ | 3.10 x 3.10 x 2.90 | 6-12 / 6-24 | 55 / 37 | 0.95 / 0.80 | 0.05~1.4 | ≥27 | 10819 / 9820 |
| XCF II / KYF II -30 | 30 m³ | 3.50 x 3.50 x 3.025 | 7-15 / 7-30 | 55 / 45 | 1.01 / 0.85 | 0.05~1.4 | ≥31 | 14810 / 13820 |
| XCF II / KYF II -40 | 40 m³ | 3.80 x 3.80 x 3.40 | 8-19 / 8-40 | 75 / 55 | 1.1 / 0.95 | 0.05~1.4 | ≥32 | 18790 / 17097 |
| XCF II / KYF II -50 | 50 m³ | 4.40 x 4.40 x 3.50 | 10-25 / 10-40 | 90 / 75 | 1.20 / 1.03 | 0.05~1.4 | ≥33 | 22000 |
Larger sizes up to 160 m³ are also available on request.
Working Principle
The impeller inside the rotor-stator assembly draws in pulp and air and disperses them into fine bubbles. The specially shaped rotor and stator keep the pulp circulating evenly, giving a stable froth and efficient particle-bubble contact, so valuable minerals are floated while gangue stays in the pulp.
ApplicationsSuitable for roughing, scavenging and cleaning of non-ferrous, ferrous and non-metallic minerals. Proven in many production lines, including the separation of difficult and refractory ores, where the series has reached an internationally leading level.
Selection should consider ore characteristics, flotation test results, required processing capacity and flotation circuit configuration.
Please provide the ore type, required capacity and flotation process for model selection.
