Product Description

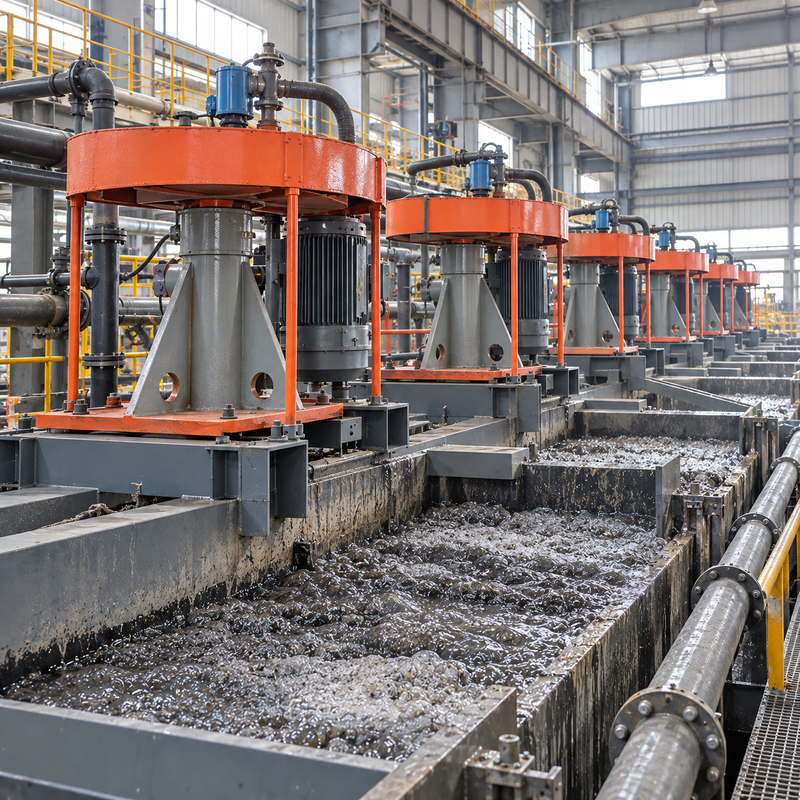

Industrial Flotation Cell for Roughing Scavenging and Cleaning Operations
This industrial flotation cell is designed for roughing, scavenging and cleaning operations in medium and large mineral processing plants. The equipment uses externally supplied air and mechanical agitation for mineral flotation. Multiple cells can be configured according to the beneficiation flowsheet for processing non-ferrous, ferrous and non-metallic minerals.
Key Features
Independent Air Control: The external air supply allows the air volume to be adjusted according to operating requirements.
High Slurry Circulation: The impeller promotes slurry circulation to maintain mineral suspension and support air dispersion.
U-Shaped Tank Design: The tank structure helps reduce solids accumulation at the bottom of the flotation cell.
Rotor-Stator Mechanism: The rotor and stator are designed to provide controlled slurry movement with relatively uniform wear.
Multi-Cell Arrangement: Individual cells can be configured according to the required flotation stages and plant flowsheet.
Roughing, Scavenging and Cleaning
Roughing
Used as the primary separation stage to recover valuable floatable minerals from the feed.
Scavenging
Further processes the remaining slurry to recover additional floatable minerals.
Cleaning
Further separates the flotation product according to concentrate requirements.
The actual number of cells in each stage depends on the ore characteristics, processing capacity and beneficiation flowsheet.
Working Principle
Low-pressure air from the blower enters the impeller area through the hollow shaft and air distributor. The rotating impeller mixes the air with the slurry, while the surrounding stator stabilizes and directs the flow. Mineralized bubbles rise to form a froth layer for discharge, while the remaining slurry continues to circulate or passes to the next flotation cell.
Main Structure
Impeller
Air Distributor
Stator
Tank Body
Main Shaft
Bearing Assembly
Air Control Valve
Application
Designed for flotation processing of:
Non-Ferrous Minerals
Ferrous Minerals
Non-Metallic Minerals
Feed Particle Size: 0.3-0.01 mm − 0.074 mm Fraction: approximately 50%-90%
Equipment Selection
For equipment selection and flotation circuit configuration, please provide:
Ore Type
Processing Capacity
Feed Particle Size
Pulp Conditions
Required Flotation Stage
Cell Volume
The cell quantity and arrangement can then be determined according to the specific process requirements.
FAQ
Can the flotation cells be arranged in multiple stages?
Yes. The cells can be configured according to the required flotation process and plant flowsheet.
How is the flotation cell air volume controlled?
Air is supplied externally and can be adjusted according to flotation operating requirements.
What information is required for equipment selection?
Ore type, processing capacity, feed particle size, pulp conditions, flotation stages and required cell volume are recommended for equipment selection.
