| Brand Name: | Y&X |
| Model Number: | XCF/KYF II Flotation Machine |
| MOQ: | 1 Set |
| Price: | Negotiate |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C,T/T |

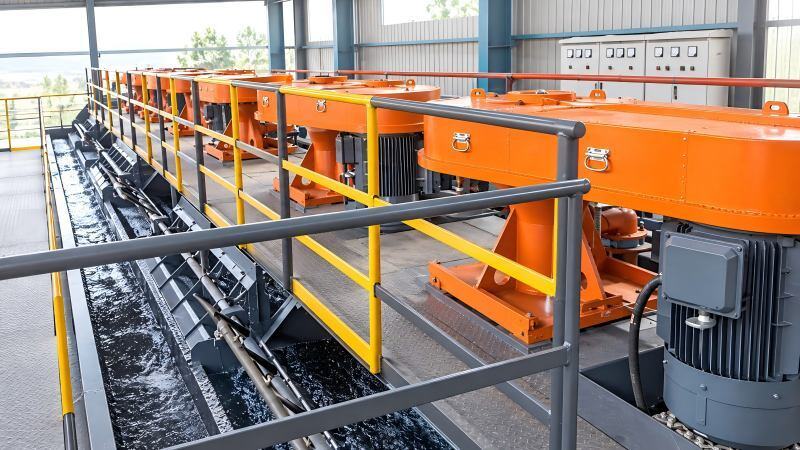

The XCF II / KYF II Pneumatic Mechanical Flotation Cell is designed for roughing, scavenging and cleaning operations in mineral processing plants.
XCF II provides slurry suction capability, while KYF II operates without slurry suction. With external air supply, mechanical agitation and effective air dispersion, the system provides stable slurry circulation and air-pulp mixing for the flotation of non-ferrous, ferrous and non-metallic minerals.
XCF II provides slurry suction, while KYF II is designed without slurry suction. Their combined arrangement supports continuous multi-cell flotation circuits.
Air is supplied independently by a blower, allowing the air volume to be adjusted according to flotation operating conditions.
The air distributor and rotor work together to disperse air into the slurry and promote effective air-pulp mixing.
The rotor design provides strong slurry circulation, helping maintain mineral particles in suspension and supporting stable flotation operation.
The rotor-stator arrangement is designed for relatively uniform wear, while the simplified mechanical structure facilitates routine inspection and maintenance.
| Item | XCF II | KYF II |
|---|---|---|
| Flotation Type | Pneumatic Mechanical | Pneumatic Mechanical |
| External Air Supply | Yes | Yes |
| Mechanical Agitation | Yes | Yes |
| Slurry Suction | Yes | No |
| Typical Position | First cell of a flotation stage | Subsequent cells |
| Operation | Roughing / Scavenging / Cleaning | Roughing / Scavenging / Cleaning |
XCF II → KYF II → KYF II → KYF II
The actual number and arrangement of flotation cells should be selected according to the mineral processing flowsheet and operating requirements.
During operation, the rotor draws slurry into the agitation zone. At the same time, low-pressure air supplied by an external blower enters through the hollow shaft and air distributor.
The rotor mixes the air with the slurry and disperses the mixture outward. The surrounding stator stabilizes and directs the slurry flow.
Mineralized bubbles rise to the surface and form a froth layer, which is discharged through the froth launder by the scraper mechanism. The remaining slurry continues circulating or flows to the next flotation cell for further separation.
The flotation cell mainly consists of:
Rotor / Impeller • Air Distributor • Stator • Tank • Main Shaft • Bearing Assembly • Air Control Valve • Froth Scraper
Compared with KYF II, the XCF II structure incorporates additional components associated with its slurry suction function.
XCF II / KYF II flotation cells are suitable for roughing, scavenging and cleaning operations in medium and large mineral processing plants.
Applicable mineral processing applications include:
Non-ferrous Metal Minerals • Ferrous Metal Minerals • Non-metallic Minerals • Phosphate Ore
According to the supplied technical documentation, the applicable feed particle size range is 0.3 - 0.01 mm, with the −0.074 mm fraction accounting for approximately 50%-90%.
Flotation cell configuration should be selected according to actual process conditions. For equipment selection, please provide:
Ore Type • Processing Capacity • Feed Particle Size • Pulp Conditions • Flotation Stage • Required Cell Volume
Y&X can recommend the appropriate XCF II / KYF II configuration according to the flotation process requirements.
XCF II has slurry suction capability, while KYF II does not. XCF II can therefore be arranged as the first cell of a flotation stage, followed by KYF II cells.
Yes. The two models can be combined in the same flotation circuit according to process requirements.
Yes. The XCF II / KYF II flotation machine uses an external low-pressure air supply.
Selection depends on ore characteristics, processing capacity, particle size, flotation flowsheet and operating conditions. Providing these parameters helps determine the appropriate equipment configuration.
