Intelligent Chemical Dosing Peristaltic Pump with RS485 and Flow Calibration

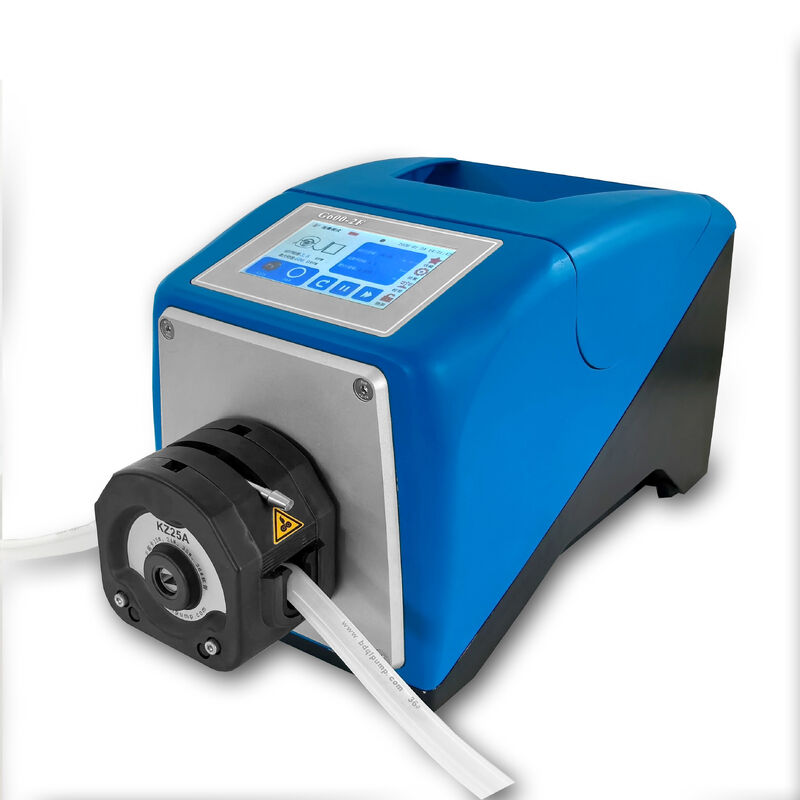

The G600-1F intelligent peristaltic dosing pump is designed for controlled liquid transfer and dosing applications. It combines touchscreen operation, flow calibration, multiple operating modes, external control and RS485 communication for flexible integration into automated dosing systems. With a speed range of 0.01–600 rpm and 0.01 rpm speed resolution, the pump allows fine adjustment of liquid delivery according to different process requirements. For mineral processing applications, it can be integrated as a liquid metering and delivery component in reagent preparation and dosing systems.

• Intelligent Touchscreen Control
  Equipped with a 4.3-inch industrial color LCD for convenient parameter setting and operating status display.
• RS485 / Modbus Communication
  Supports RS485 communication for integration with compatible automation and control systems.
• Flow Calibration Function
  Built-in flow calibration allows users to adjust the displayed flow according to actual delivery conditions.
• Multiple External Control Signals
  Supports 0–5V, 0–10V, 4–20mA and 0–10kHz external control inputs.
• Four Operating Modes
  Supports Flow Mode, Filling Mode, Timed Quantitative Mode and Fixed-Speed Quantitative Mode for different liquid dosing requirements.
• Fine Speed Adjustment
  Provides a 0.01–600 rpm speed range with 0.01 rpm resolution for flexible dosing control.
• Multiple Pump Head Options
  Compatible with YZ1515, YZ2515, DG Series, DMD15, YT15 and YT25 pump heads.

The G600-1F industrial peristaltic dosing pump is suitable for applications requiring controlled liquid transfer, metering and dosing.

For your mineral processing equipment website, the most relevant applications include:

• Mineral Processing Reagent Dosing
  Used for controlled addition and transfer of liquid reagents in mineral processing processes.
• Mining and Metallurgy
  Suitable for reagent addition, hydrometallurgical liquid transfer and related liquid handling applications.
• Chemical Dosing
  Can be used for controlled transfer and quantitative addition of process liquids and chemical additives.
• Automated Dosing Systems
  RS485/Modbus communication and multiple external control signals allow the pump to be incorporated into automated dosing systems.
• Process Liquid Transfer
  Multiple pump head and tubing options provide flexibility for different liquid transfer requirements.

• Flow Mode
  Allows the required flow setting to be adjusted for continuous liquid delivery.
• Filling Mode
  Supports preset dispensing volume, dispensing cycles, interval time and other parameters for repeated dispensing operations.
• Timed Quantitative Mode
  Allows quantitative liquid delivery according to preset operating parameters.
• Fixed-Speed Quantitative Mode
  Supports quantitative dispensing under a preset operating speed.

The G600-1F provides multiple external control options for system integration:

• 0–5V / 0–10V / 4–20mA / 0–10kHz

It also supports:

• RS485 / Modbus Communication

These interfaces allow the pump to be connected with compatible external control equipment and incorporated into automated liquid dosing systems.

In mineral processing applications, the G600-1F can function as the metering and liquid delivery unit within a reagent dosing system.

A typical configuration can include:

• Reagent Preparation / Storage → Peristaltic Dosing Pump → Pipeline → Dosing Point

The appropriate pump head and tubing can be selected according to the required flow rate and liquid handling conditions.

Y&X Beijing Technology Co., Ltd. provides equipment and supporting components for mineral processing applications, including flotation equipment, flotation machine parts and reagent dosing equipment.

We support equipment selection and configuration according to process requirements, required flow or capacity, and operating conditions.
