| Brand Name: | Y&X |
| Model Number: | Dosing Pump |
| MOQ: | 1 Set |
| Price: | Negotiate |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C,T/T |

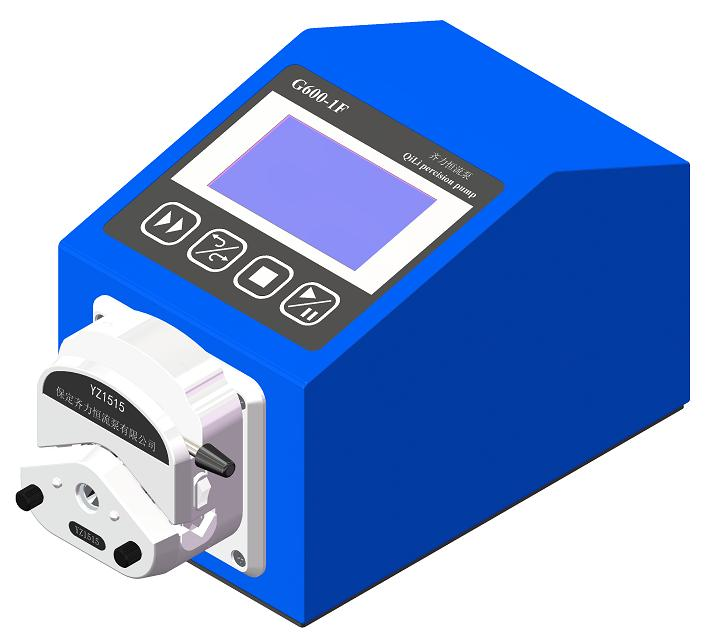

The G600-1F is a high-protection industrial peristaltic pump designed for liquid transfer and dosing applications. With an IP65 protection rating, a 4.3-inch industrial touchscreen, and a wide speed range of 0.01–600 rpm, it provides flexible operation for demanding industrial liquid handling processes.
The pump supports multiple pump heads and tubing specifications, flow calibration, external control and RS485/Modbus communication, making it suitable for standalone operation as well as integration into automated dosing systems.
IP65 Protection: The drive unit provides IP65 protection for industrial operating environments.
Wide Speed Range: Adjustable from 0.01 to 600 rpm, supporting different liquid transfer and dosing requirements.
Multiple Pump Head Options: Compatible with YZ1515, YZ2515, DG Series, DMD15, YT15 and YT25 pump heads.
Precise Speed Adjustment: Speed display resolution of 0.01 rpm, combined with flow calibration for controlled liquid delivery.
Industrial Communication: Supports RS485 / Modbus communication for connection with external control systems.
Equipped with a 4.3-inch industrial true-color LCD touchscreen for clear display of operating parameters and convenient setting adjustment.
The touchscreen is combined with independent mechanical buttons, providing convenient access to commonly used operating functions.
An independent full-speed button enables rapid tubing filling and emptying, simplifying liquid preparation and changeover.
Supports Flow Mode, Filling Mode, Timed Quantitative Mode and Fixed-Speed Quantitative Mode, covering different liquid transfer and dispensing requirements.
Supports 0–5V, 0–10V, 4–20mA and 0–10kHz external control signals for integration with external control equipment.
RS485 communication with Modbus protocol facilitates integration into automated dosing and process control systems.
The flow calibration function allows operating data to be corrected according to actual measured liquid volume, helping improve dispensing accuracy.
The drive unit features an IP65 protection rating for industrial applications requiring enhanced environmental protection.
| Parameter | Specification |
|---|---|
| Model | G600-1F |
| Speed Range | 0.01–600 rpm |
| Speed Display Resolution | 0.01 rpm |
| Display | 4.3-inch Industrial True-Color LCD |
| Dispensing Volume | 0.001–9999.999 mL |
| Dispensing Cycles | 0–9999 cycles (0 = continuous cycle) |
| Interval Time | 0–9999.99 s |
| Suck-Back Angle | 0–360° |
| External Control Input | 0–5V / 0–10V / 4–20mA / 0–10kHz |
| Communication | RS485 / Modbus |
| Power Supply | AC100–240V, 50/60Hz |
| Power Consumption | <60 W |
| Operating Environment | 0–40°C, <80% RH, non-condensing |
| Dimensions (L × W × H) | 272.7 × 160 × 185.5 mm |
| Drive Weight | 3.5 kg |
| Protection Rating | IP65 |
| Compatible Pump Heads | YZ1515 / YZ2515 / DG Series / DMD15 / YT15 / YT25 |
The G600-1F industrial peristaltic dosing pump is suitable for applications requiring controlled liquid transfer, metering and dosing.
For your mineral processing equipment website, the most relevant applications include:
Mineral Processing Reagent Dosing
Used for controlled addition and transfer of liquid reagents in mineral processing processes.
Mining and Metallurgy
Suitable for reagent addition, hydrometallurgical liquid transfer and related liquid handling applications.
Chemical Dosing
Can be used for controlled transfer and quantitative addition of process liquids and chemical additives.
Automated Dosing Systems
RS485/Modbus communication and multiple external control signals allow the pump to be incorporated into automated dosing systems.
Process Liquid Transfer
Multiple pump head and tubing options provide flexibility for different liquid transfer requirements.
The G600-1F is equipped with a 4.3-inch industrial true-color touchscreen. The main interface provides access to operating status, flow/speed settings, operating parameters and system functions.
Operating Status
Displays the current operating status and provides screen-lock functionality to help prevent unintended operation.
Flow / Speed Display and Adjustment
Operating flow or speed can be viewed and adjusted according to the selected operating mode.
Operating Parameters
Displays parameters such as delivered liquid volume, operating time, interval time, dispensing cycles, suck-back angle and accumulated values.
Function Settings
Provides access to pump head selection, tubing selection, operating mode, external control and flow calibration settings.
Flow Mode
Allows the required flow setting to be adjusted for continuous liquid delivery.
Filling Mode
Supports preset dispensing volume, dispensing cycles, interval time and other parameters for repeated dispensing operations.
Timed Quantitative Mode
Allows quantitative liquid delivery according to preset operating parameters.
Fixed-Speed Quantitative Mode
Supports quantitative dispensing under a preset operating speed.
The G600-1F provides multiple external control options for system integration:
0–5V / 0–10V / 4–20mA / 0–10kHz
It also supports:
RS485 / Modbus Communication
These interfaces allow the pump to be connected with compatible external control equipment and incorporated into automated liquid dosing systems.
In mineral processing applications, the G600-1F can function as the metering and liquid delivery unit within a reagent dosing system.
A typical configuration can include:
Reagent Preparation / Storage → Peristaltic Dosing Pump → Pipeline → Dosing Point
The appropriate pump head and tubing can be selected according to the required flow rate and liquid handling conditions.
Q1: What is the speed range of the G600-1F?
The adjustable speed range is 0.01–600 rpm, with a speed display resolution of 0.01 rpm.
Q2: Can this pump be used in a mineral processing reagent dosing system?
It can be used as a liquid transfer and metering component in reagent dosing applications.
Q3: What pump heads are compatible with the G600-1F?
Compatible pump heads include YZ1515, YZ2515, DG Series, DMD15, YT15 and YT25.
Q4: Does the pump support external control?
Yes. External control inputs include 0–5V, 0–10V, 4–20mA and 0–10kHz.
Q5: Does it support RS485 communication?
Yes. The pump supports RS485 / Modbus communication for integration with compatible control systems.
Q6: How should I select a pump head and tubing?
Selection should be based on the required flow rate, liquid characteristics and operating conditions. Customers can provide their required flow rate and liquid information for configuration selection.
Y&X Beijing Technology Co., Ltd. provides equipment and supporting components for mineral processing applications, including flotation equipment, flotation machine parts and reagent dosing equipment.
We support equipment selection and configuration according to process requirements, required flow or capacity, and operating conditions.
