| Brand Name: | Y&X |
| Model Number: | Peristaltic Dosing Pump |
| MOQ: | 1 Set |
| Price: | Negotiate |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C,T/T |

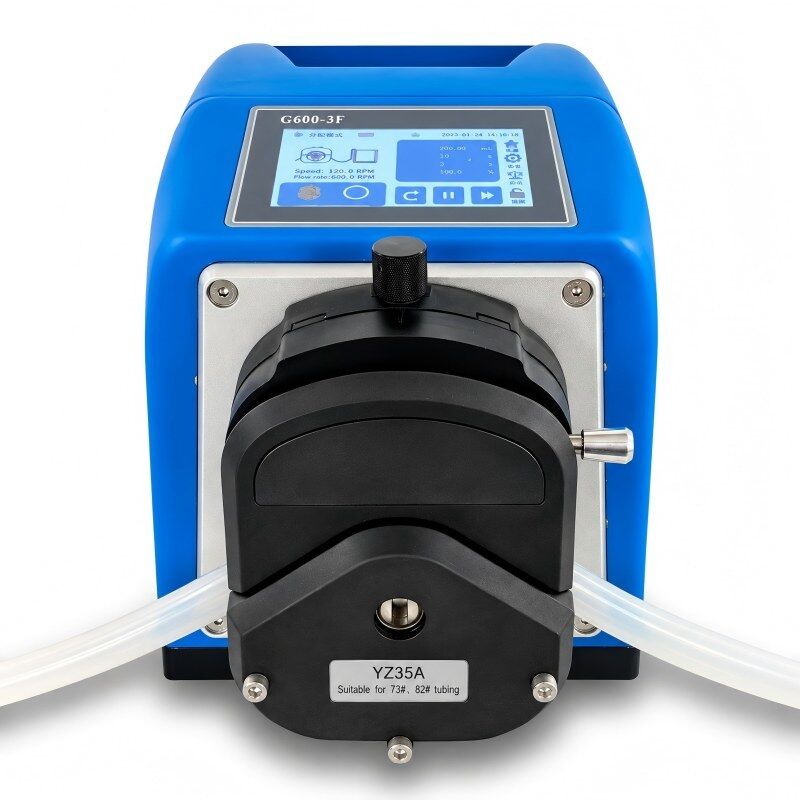

The Industrial Peristaltic Dosing Pump is engineered for precise liquid transfer and dosing applications. It integrates seamlessly into reagent dosing and liquid delivery systems for mineral processing operations where adjustable flow rates and controlled dispensing are essential.
Three drive options are available with maximum speeds of 150 rpm, 300 rpm, and 600 rpm. Multiple pump heads and tubing sizes can be configured to meet specific flow requirements.
The pump features a 4.3-inch industrial touchscreen, flow calibration, multiple dosing modes, external control interfaces, and RS485 communication, offering flexible operation for both standalone use and system integration.
Speed adjustment from 0.01 rpm, with built-in flow calibration function that uses actual delivered volume for precise flow correction.
Compatible with YZ1515, YZ2515, DG Series, DMD15, YT15 and YT25 pump heads. Various tubing sizes available to accommodate different flow requirements.
Supports flow mode, filling mode, timed quantitative mode and fixed-speed quantitative mode, providing operational flexibility for diverse liquid dosing applications.
External control options include 0-5V, 0-10V, 4-20mA and 0-10kHz, along with RS485 communication for seamless integration with automated dosing and control systems.
Features a 4.3-inch industrial true-color LCD touchscreen and independent mechanical buttons for intuitive operation. Includes full-speed function for rapid tubing filling and emptying.
Drive unit rated IP65 protection for reliable performance in demanding industrial environments.
| Parameter | G100-1F | G300-1F | G600-1F |
|---|---|---|---|
| Speed Range | 0.01-150 rpm | 0.01-300 rpm | 0.01-600 rpm |
| Speed Resolution | 0.01 rpm | 0.01 rpm | 0.01 rpm |
| Display | 4.3-inch Industrial LCD | ||
| Dispensing Volume | 0.001-9999.999 mL | ||
| Dispensing Cycles | 0-9999 | ||
| Interval Time | 0-9999.99 s | ||
| Suck-back Angle | 0-360° | ||
| External Control | 0-5V / 0-10V / 4-20mA / 0-10kHz | Same | Same |
| Communication | RS485 | RS485 | RS485 |
| Power Consumption | <40 W | <50 W | <60 W |
| Protection Rating | IP65 | IP65 | IP65 |
| Dimensions (L×W×H) | 272.7×160×185.5 mm | Same | Same |
| Drive Weight | 4.7 kg | 4.7 kg | 4.7 kg |
The peristaltic pump transfers liquid through flexible tubing installed in the pump head. During operation, the pump head rollers continuously compress the tubing to move the liquid through the line.
Since the liquid is conveyed entirely within the tubing, pump configuration can be optimized by selecting the appropriate pump head, tubing and drive speed according to specific flow conditions.
The peristaltic dosing pump serves as a liquid metering and delivery component in mineral processing reagent dosing systems.
For mineral processing applications, the appropriate tubing, pump head and operating parameters should be selected according to the liquid characteristics, required flow rate and operating conditions.
Chemical compatibility must be confirmed before selection. The operating manual specifically notes that the drive surface and some pump heads are not resistant to organic solvents or strongly corrosive liquids.
The pump integrates seamlessly into automated liquid dosing systems through comprehensive external control interfaces.
External functions enable pump operation and speed control, while RS485 communication provides robust digital system integration capabilities.
Selection should consider more than just maximum pump speed. For proper configuration, please provide:
Based on these requirements, the appropriate drive model + pump head + tubing combination can be selected.
Y & X Beijing Technology Co., Ltd. provides equipment and supporting components for mineral processing applications, including flotation equipment, flotation machine parts and reagent dosing equipment.
According to process requirements and operating conditions, we can assist customers with equipment selection and configuration for mineral processing applications.
